Kubeflow is an ecosystem that leverages Kubernetes, a popular container orchestration platform, to provide a unified and scalable environment for machine learning operations. It allows data scientists and machine learning engineers to work on their models and workflows in a consistent, cloud-native manner, ensuring reproducibility and scalability.

Kubeflow started as an open sourcing of the way Google ran TensorFlow internally, based on a pipeline called TensorFlow Extended. It began as just a simpler way to run TensorFlow jobs on Kubernetes, but has since expanded to be a multi-architecture, multi-cloud framework for running end-to-end machine learning workflows.

Key Components of Kubeflow:

  1. Pipelines: Kubeflow Pipelines is a crucial component that enables you to create, manage, and orchestrate machine learning workflows in a visual and code-free manner. It allows you to define, run, and monitor pipelines, making collaboration and automation easier.
  2. Katib: Katib is the hyperparameter tuning component of Kubeflow. It automates the process of tuning hyperparameters for your machine learning models, saving time and resources. It can integrate with various machine learning frameworks.
  3. Training Operators: Training Operators in Kubeflow simplify the deployment and management of machine learning workloads. You can use them to train and serve models, and they come with pre-configured resources for various ML frameworks.
  4. Kubeflow Serving: This component is designed to serve machine learning models in a production-ready manner. It provides model versioning, scaling, and monitoring capabilities, making it easier to deploy models as RESTful API endpoints.
  5. Metadata Store: The Metadata Store is a critical component for tracking and managing the lineage and metadata of machine learning experiments. It helps ensure that you can trace the history of a model and its data for reproducibility and compliance.
  6. UI and JupyterHub: Kubeflow provides a user-friendly web-based UI for managing pipelines and other components. JupyterHub integration allows data scientists to develop and run experiments in Jupyter notebooks within the Kubeflow environment.

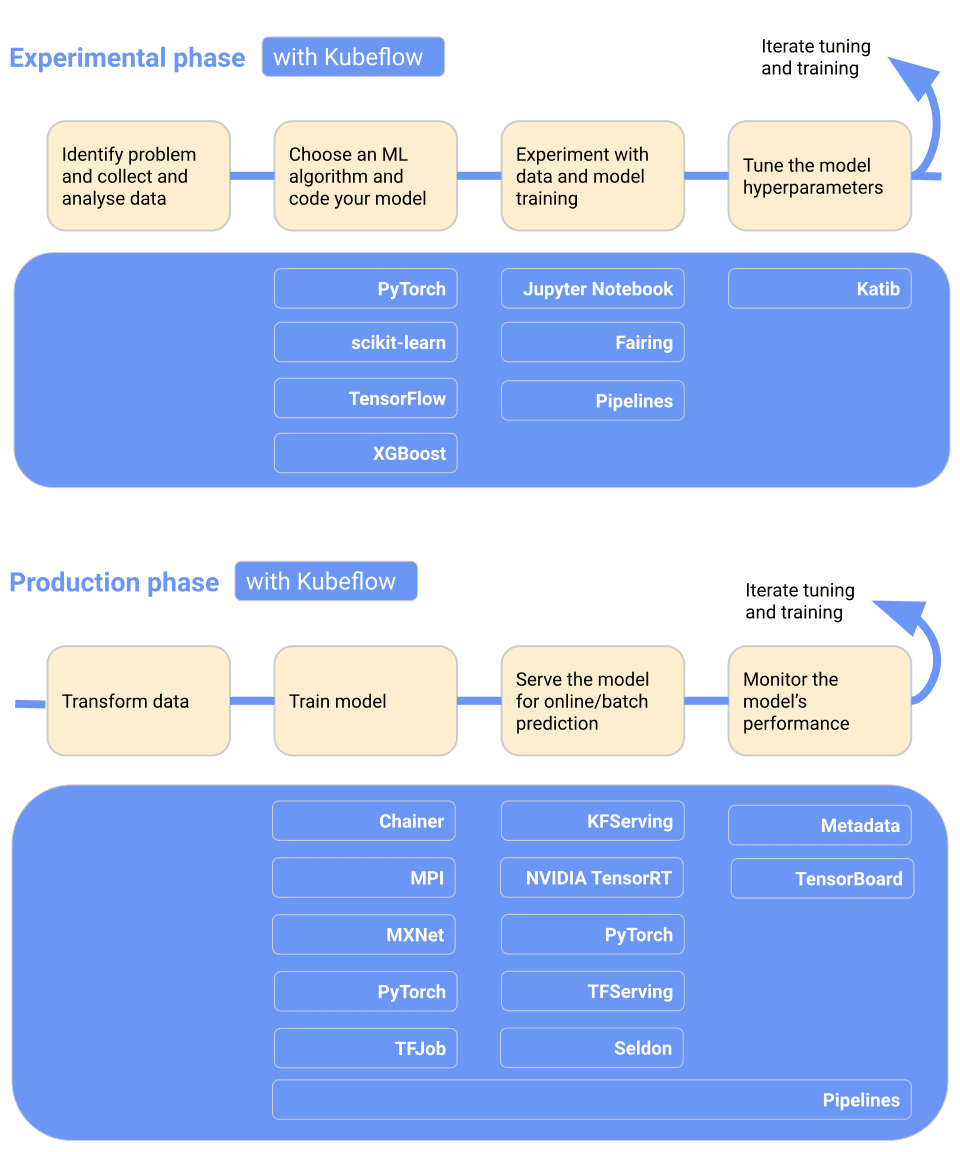

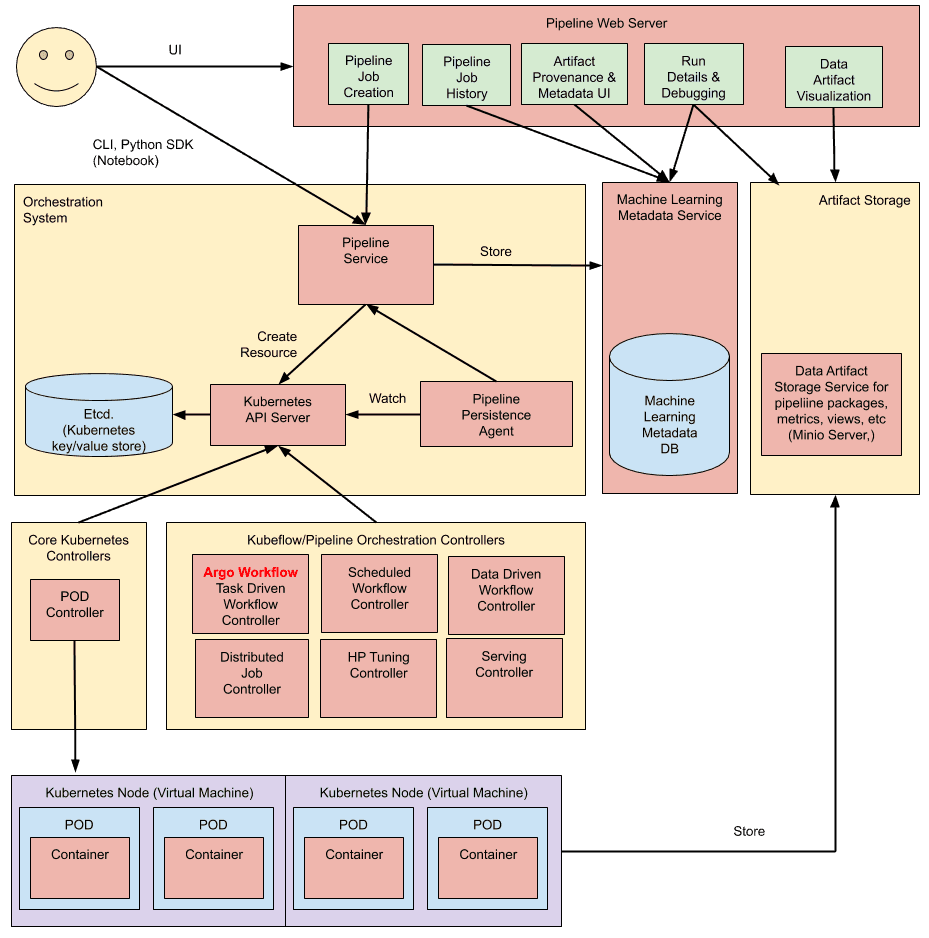

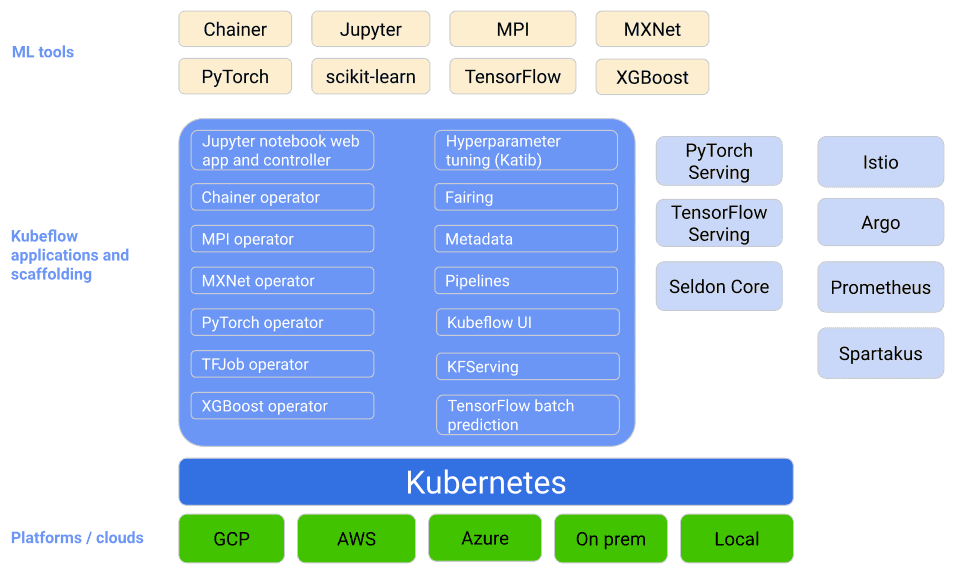

Kubeflow Architecture

Untitled

Untitled

Kubeflow Components

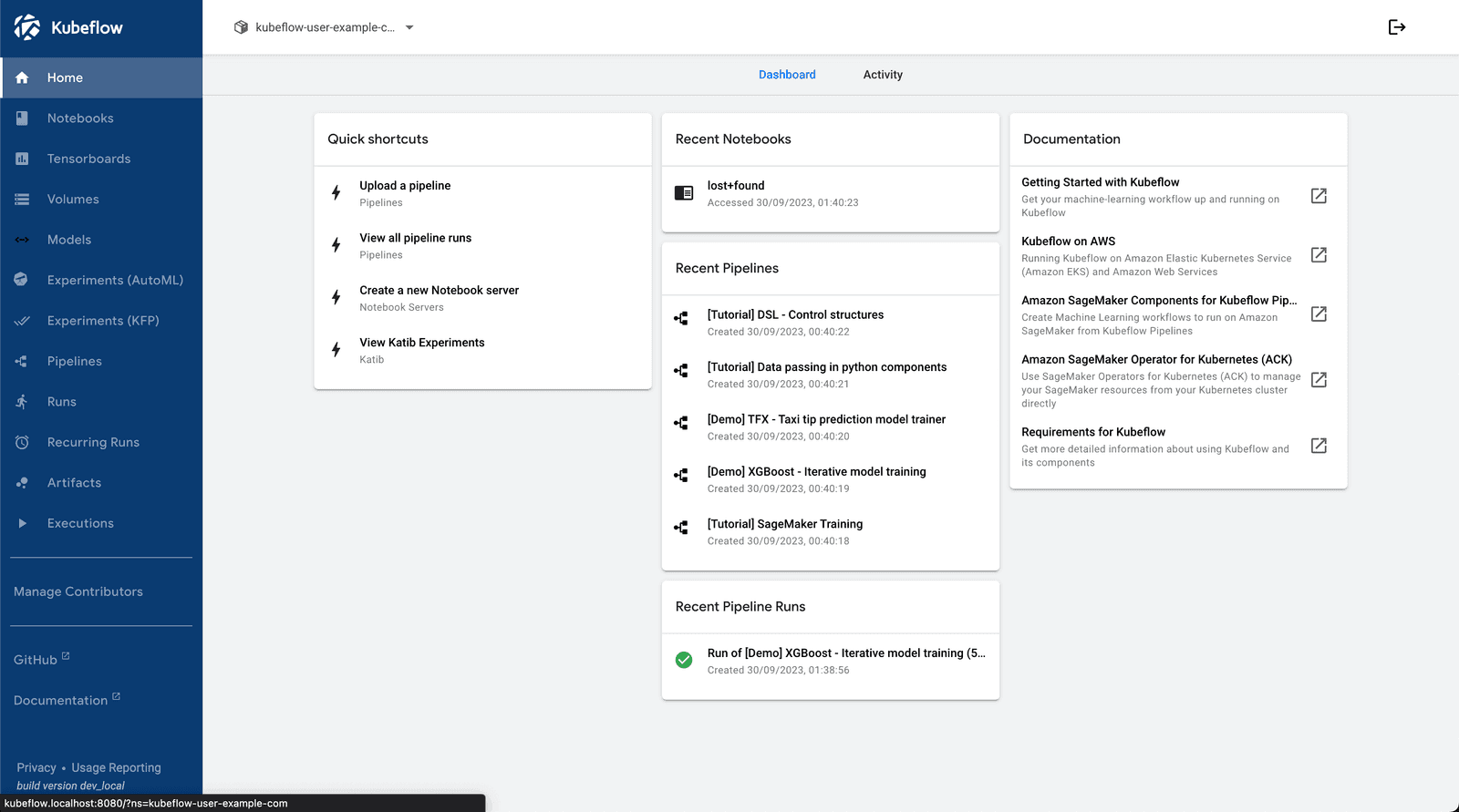

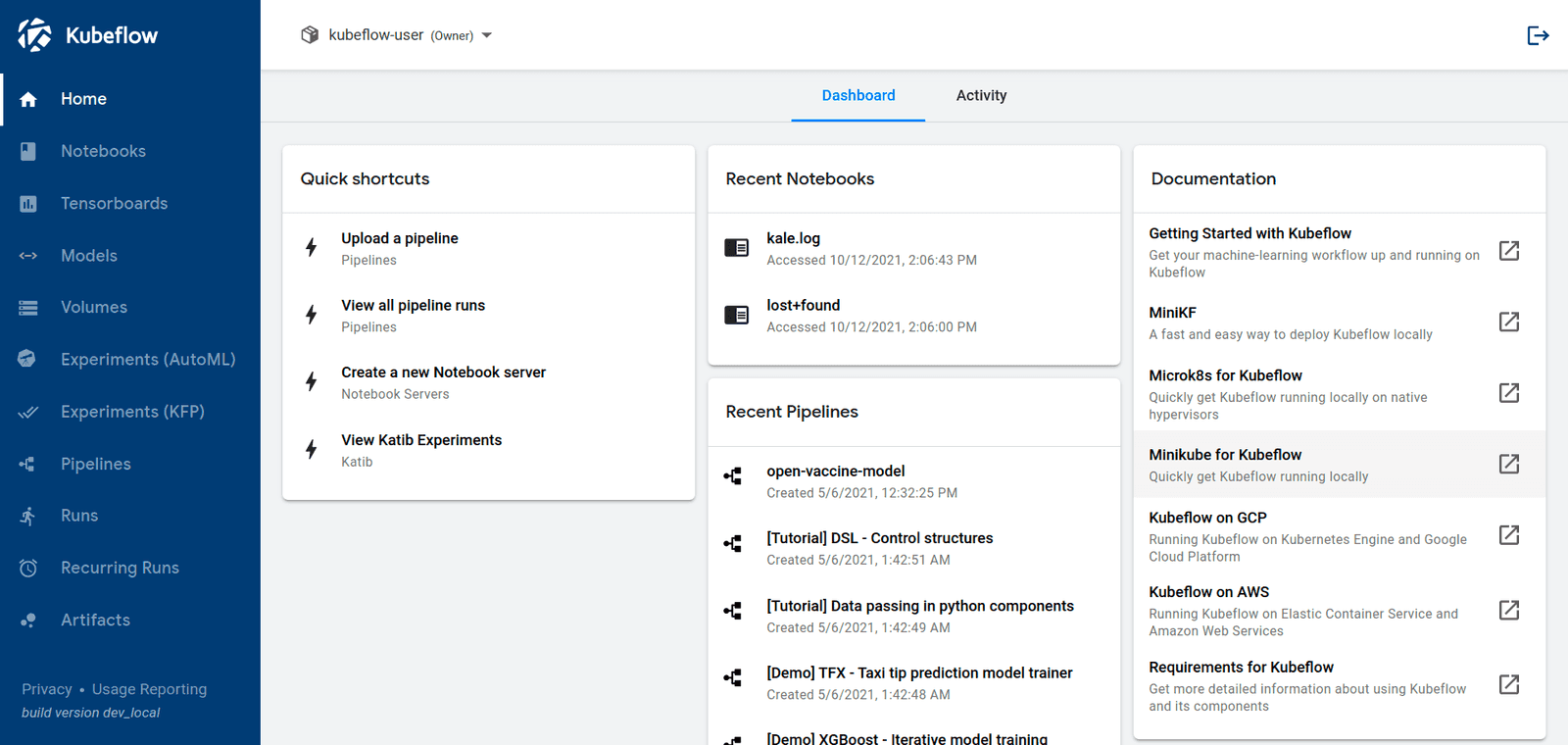

Central Dashboard

Untitled

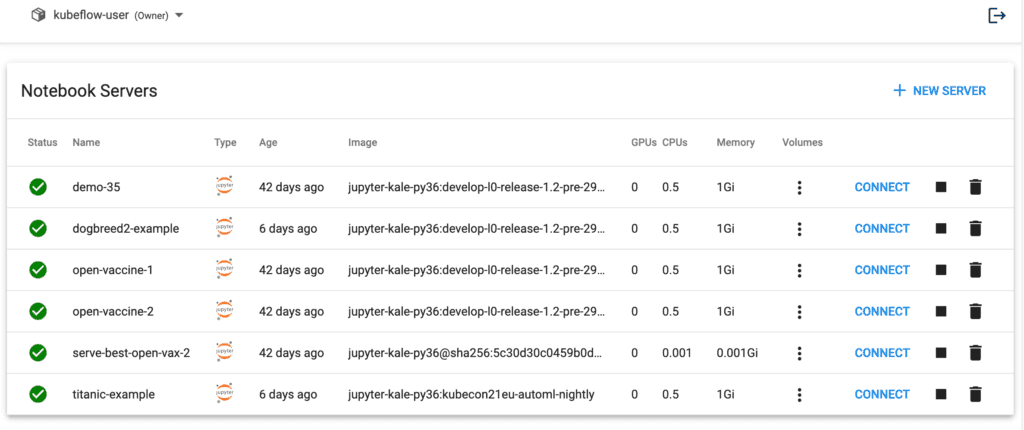

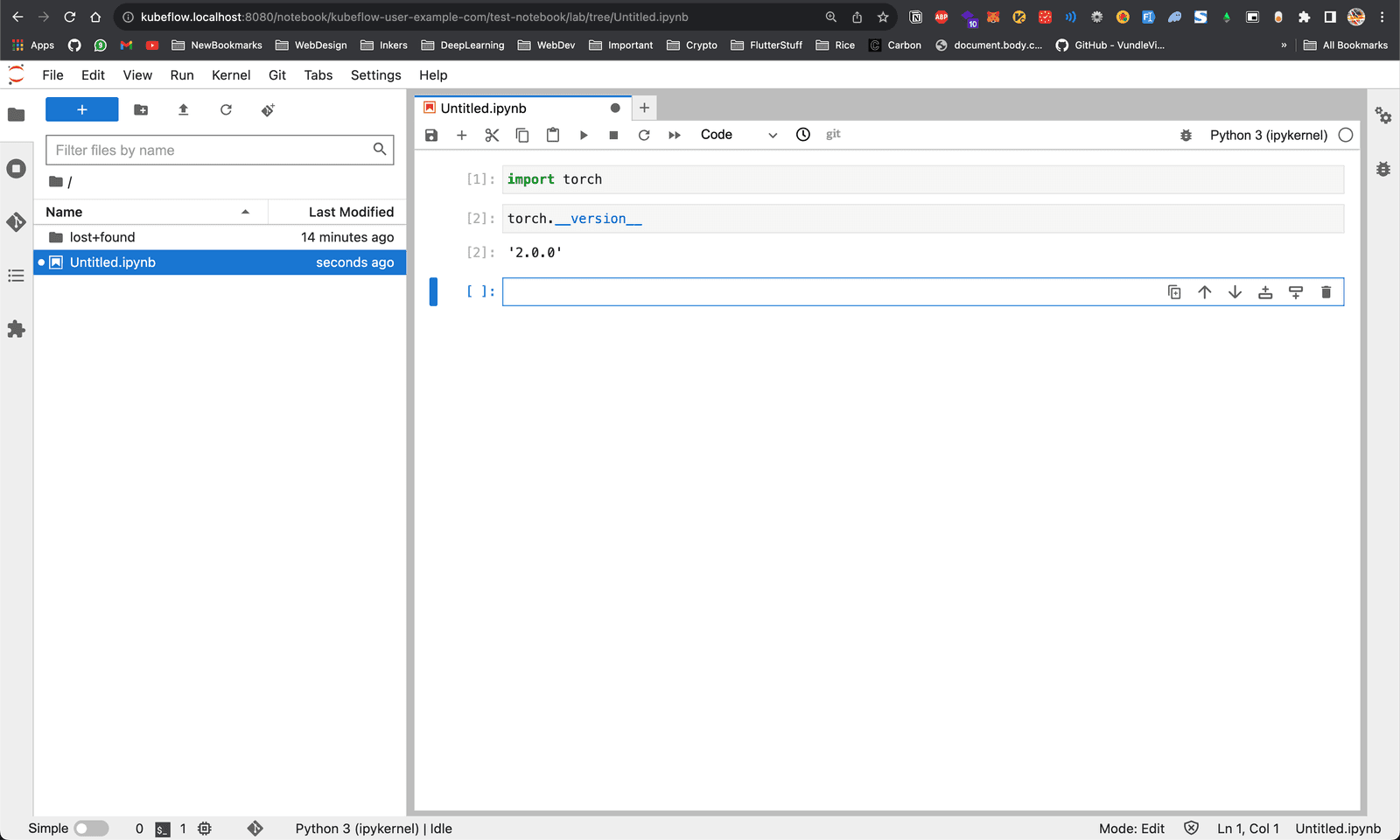

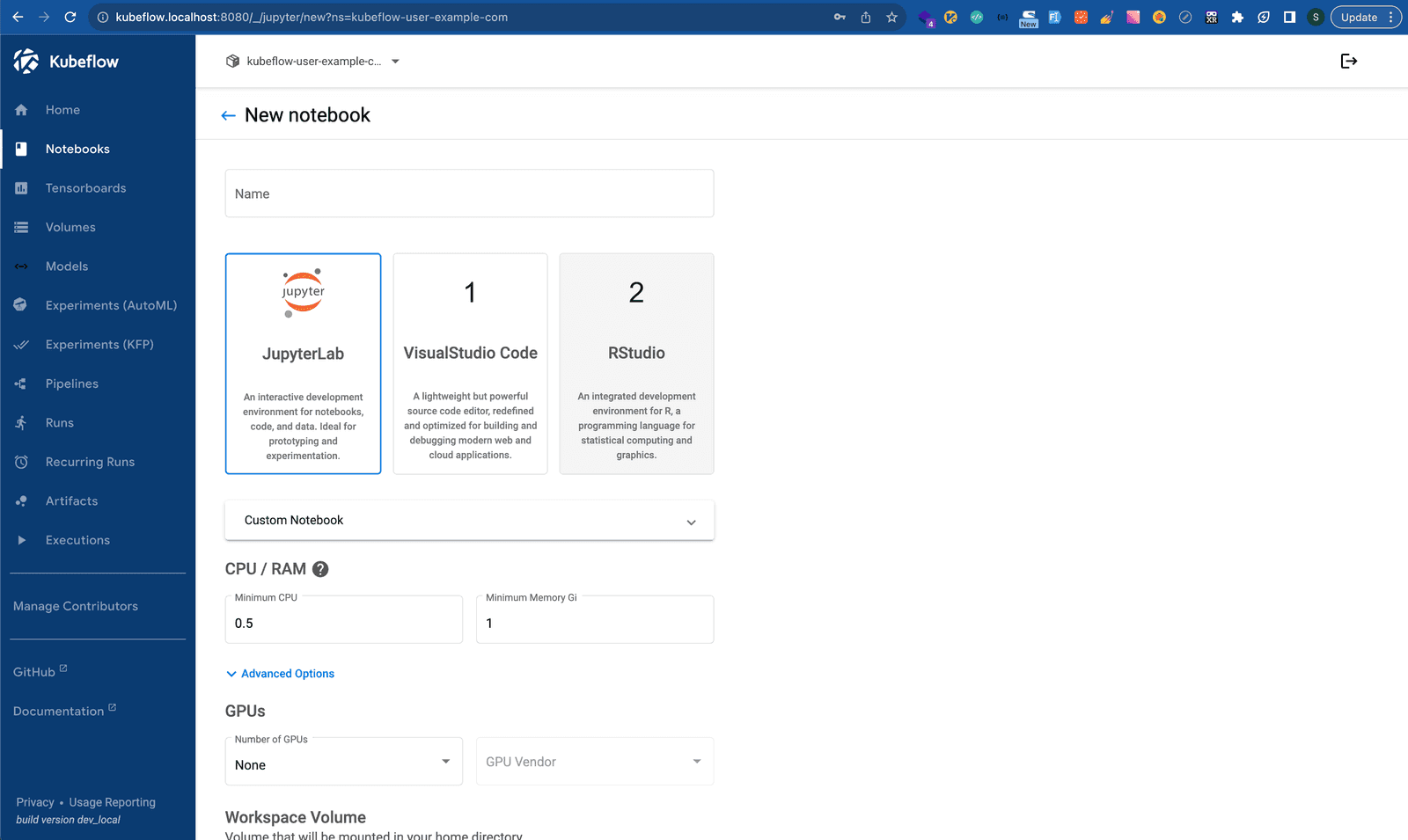

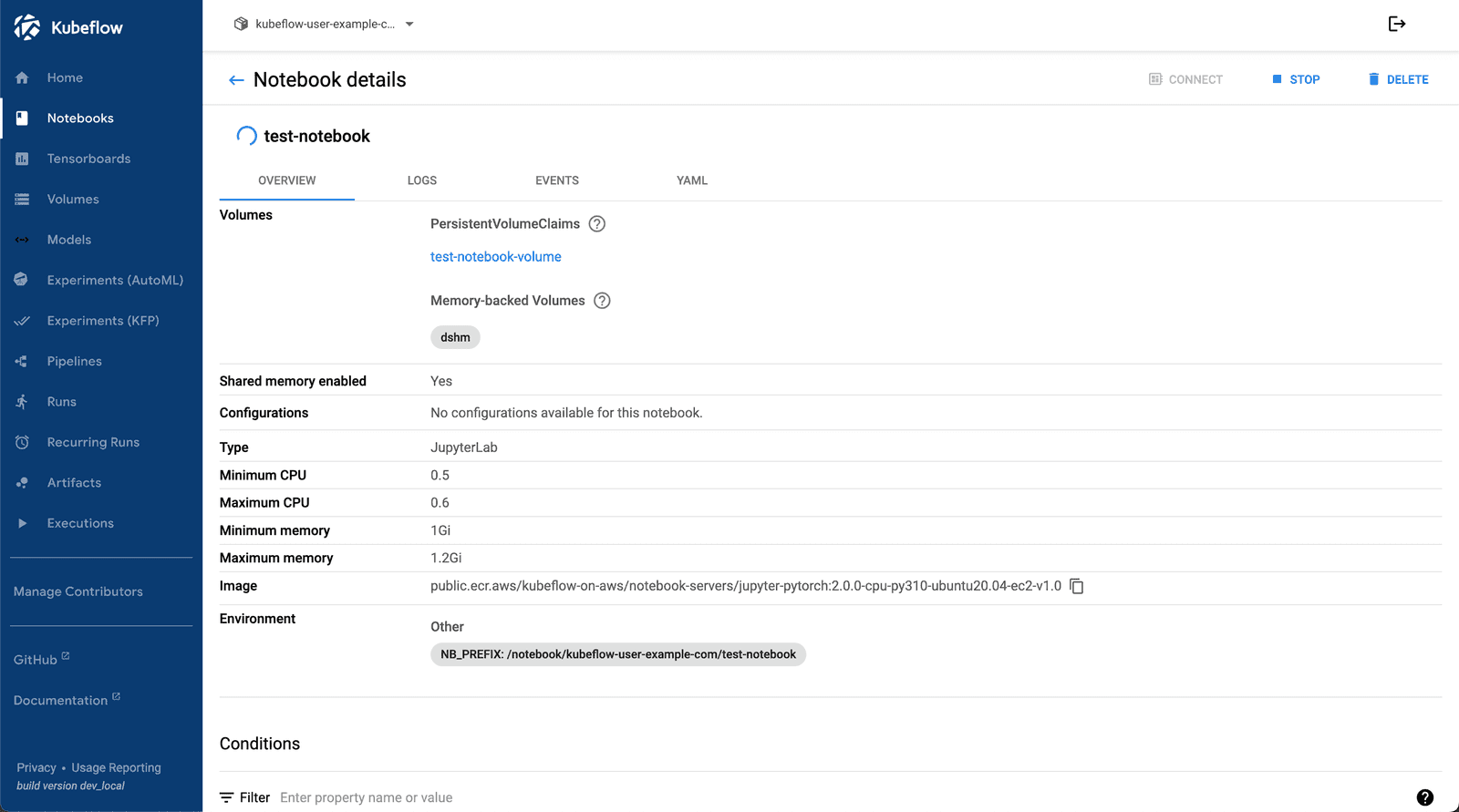

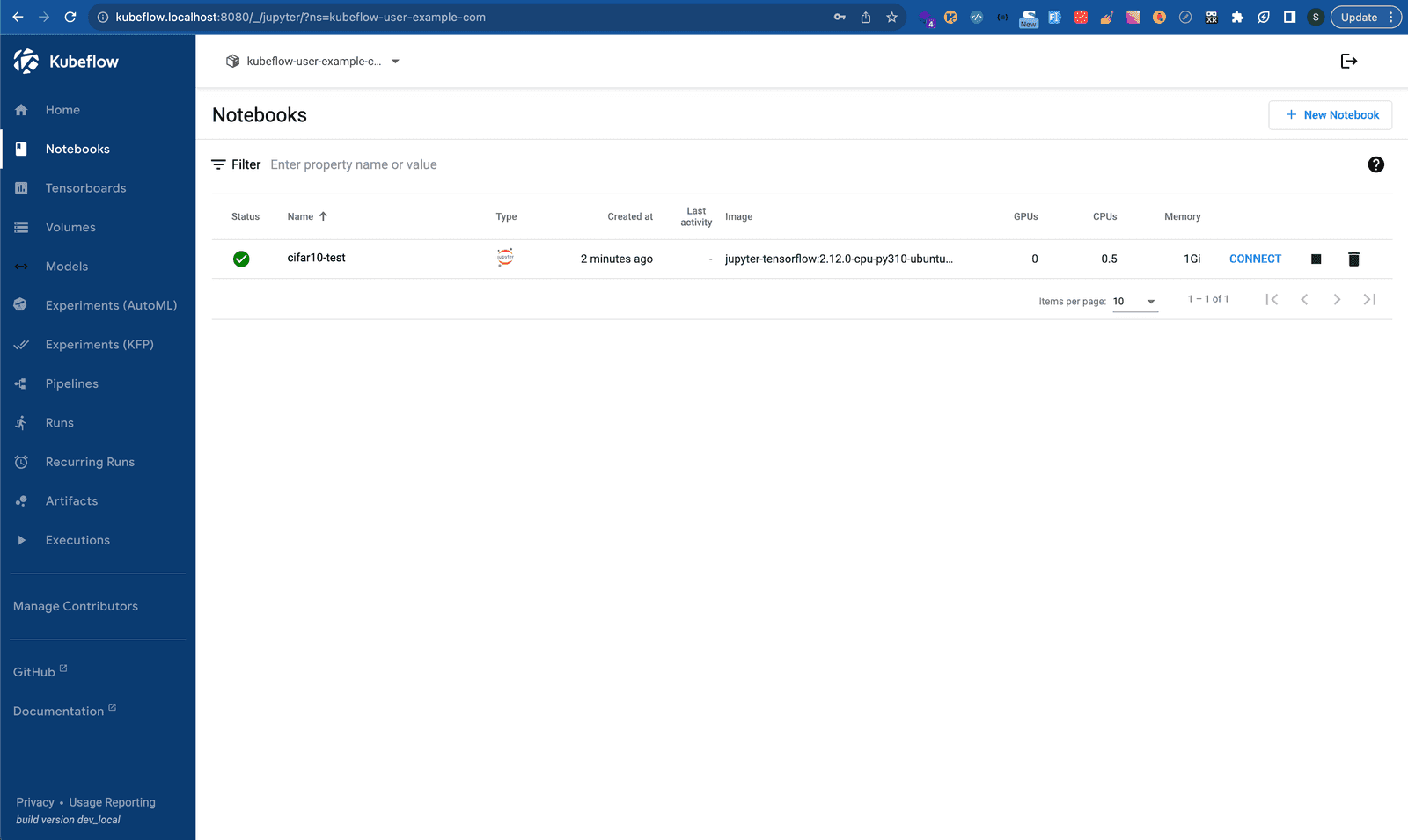

Kubeflow Notebooks

Untitled

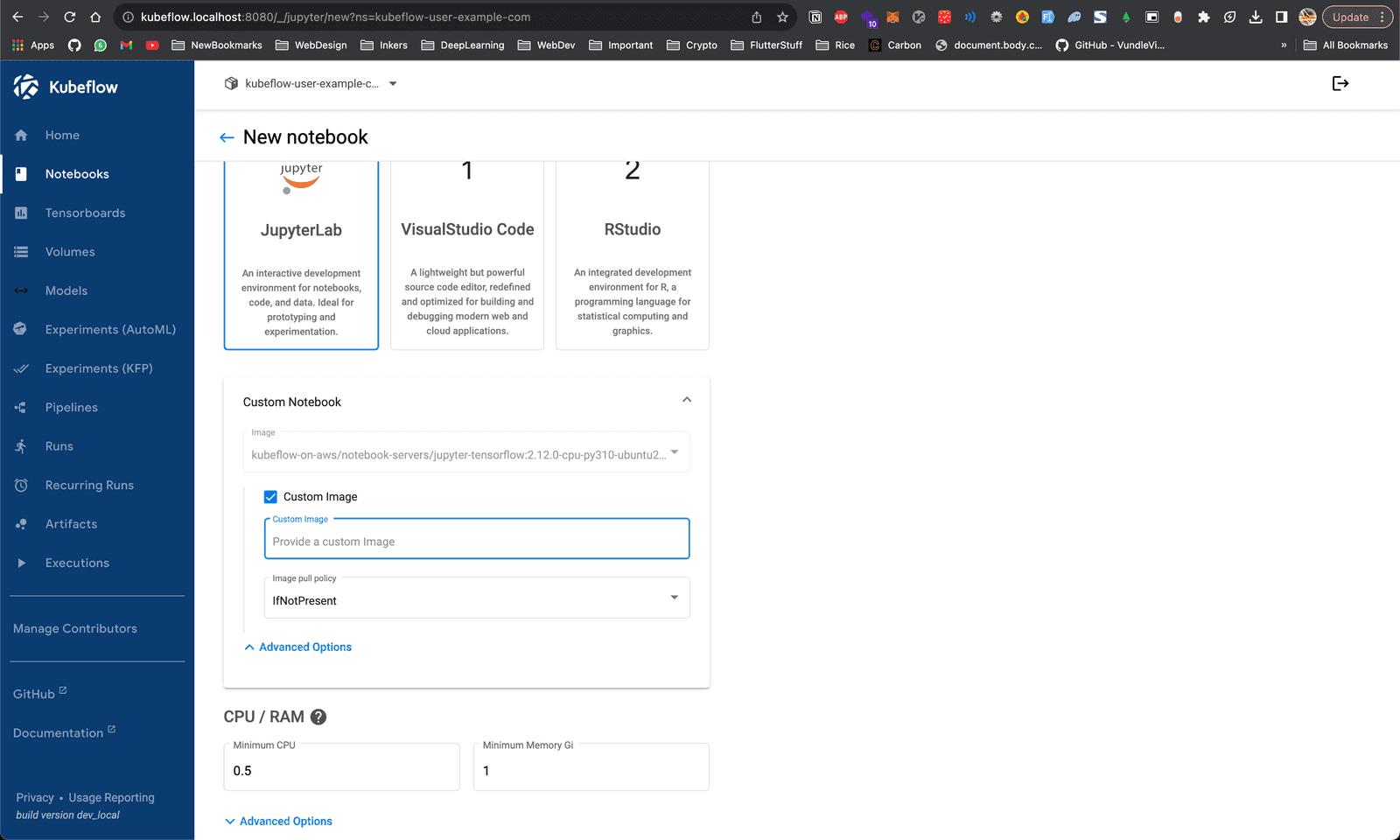

Building custom images for Kubeflow Notebooks: https://github.com/kubeflow/kubeflow/tree/master/components/example-notebook-servers#custom-images

Untitled

You can always refer the Kubeflow’s official Images and create similar custom ones https://github.com/kubeflow/kubeflow/blob/master/components/example-notebook-servers/jupyter-pytorch/Makefile

Kubeflow Training Operators

https://www.kubeflow.org/docs/components/training/pytorch/

PyTorchJob is a Kubernetes custom resource to run PyTorch training jobs on Kubernetes. The Kubeflow implementation of PyTorchJob is in [training-operator](https://github.com/kubeflow/training-operator).

apiVersion: "kubeflow.org/v1"
kind: PyTorchJob
metadata:
  name: pytorch-simple
  namespace: kubeflow
spec:
  pytorchReplicaSpecs:
    Master:
      replicas: 1
      restartPolicy: OnFailure
      template:
        spec:
          containers:
            - name: pytorch
              image: docker.io/kubeflowkatib/pytorch-mnist:v1beta1-45c5727
              imagePullPolicy: Always
              command:
                - "python3"
                - "/opt/pytorch-mnist/mnist.py"
                - "--epochs=1"
    Worker:
      replicas: 1
      restartPolicy: OnFailure
      template:
        spec:
          containers:
            - name: pytorch
              image: docker.io/kubeflowkatib/pytorch-mnist:v1beta1-45c5727
              imagePullPolicy: Always
              command:
                - "python3"
                - "/opt/pytorch-mnist/mnist.py"
                - "--epochs=1"

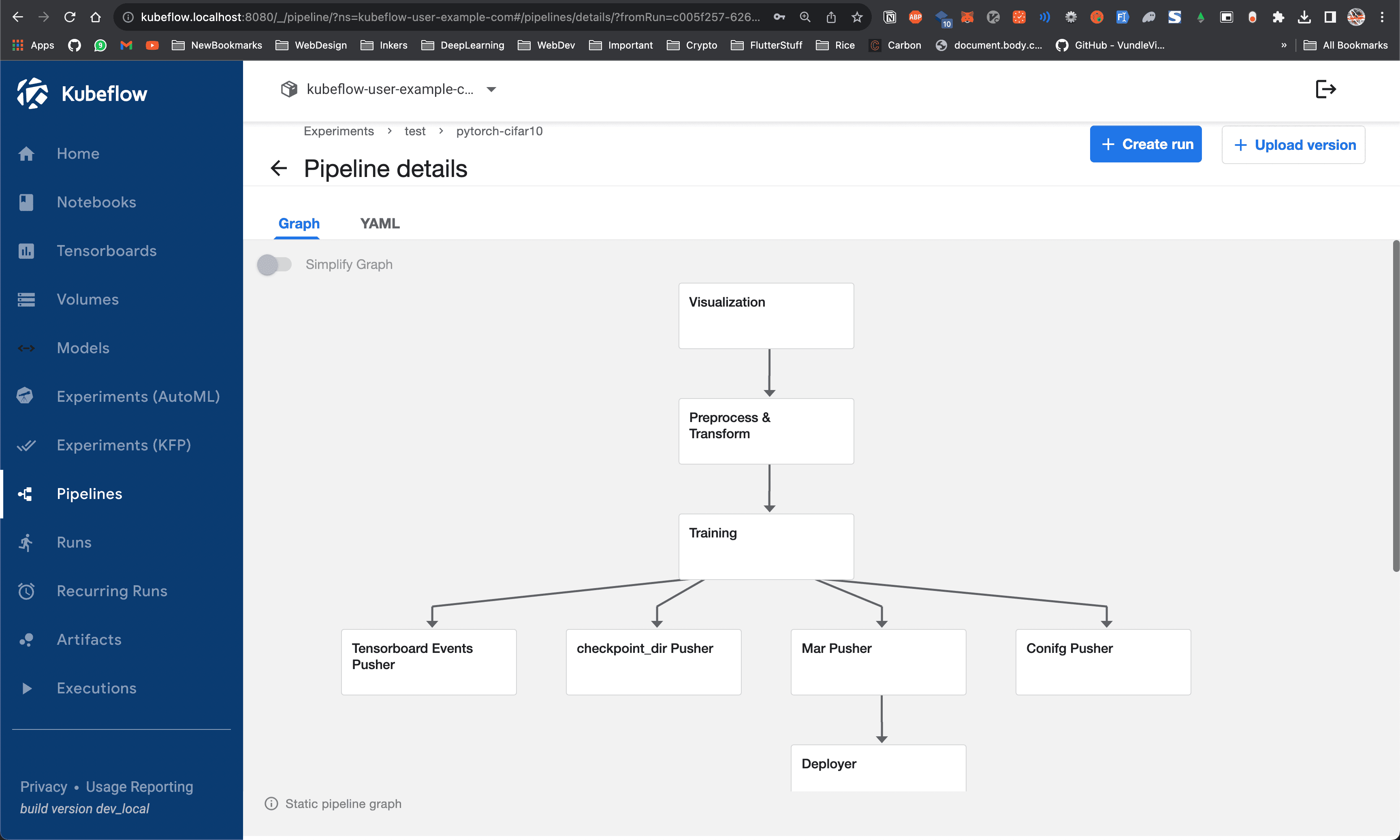

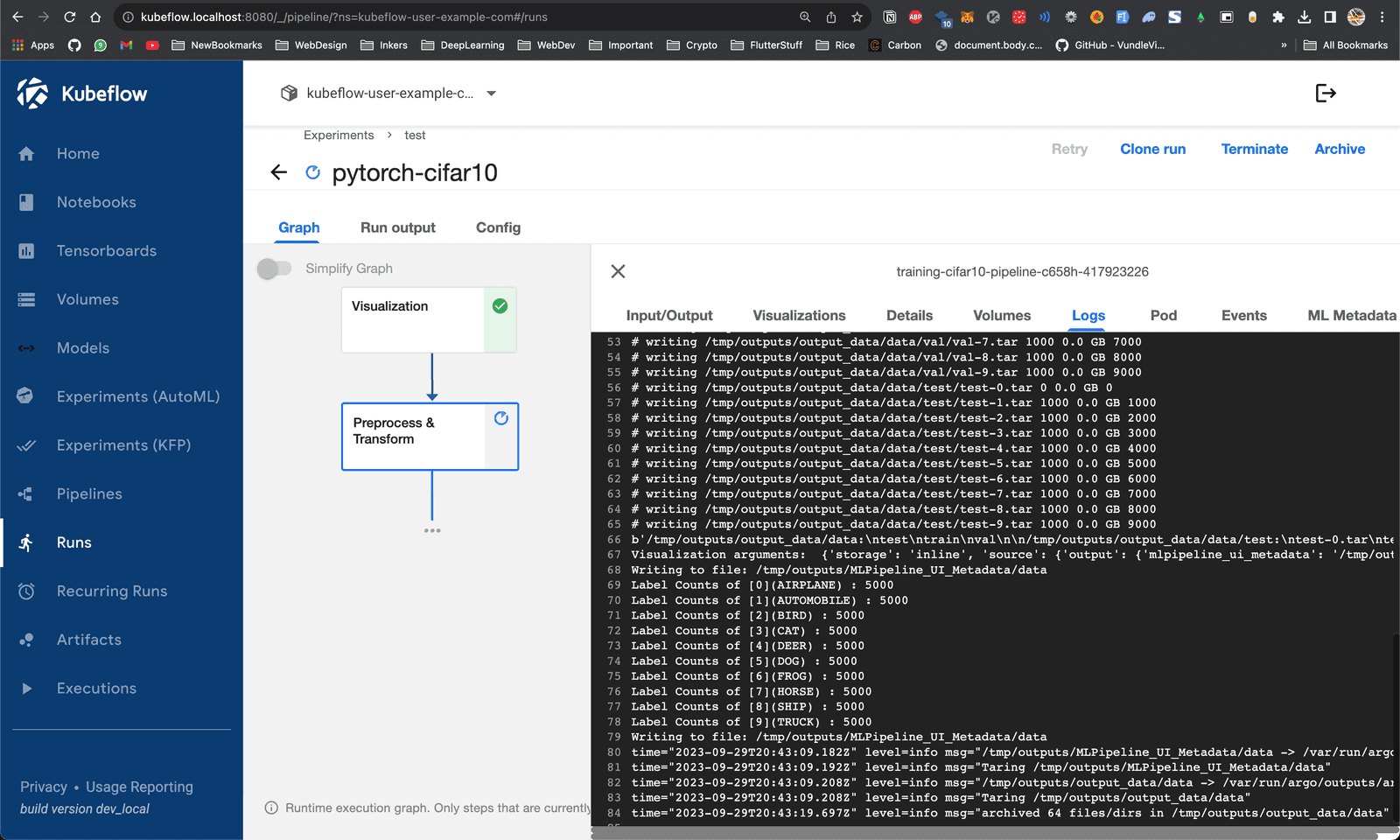

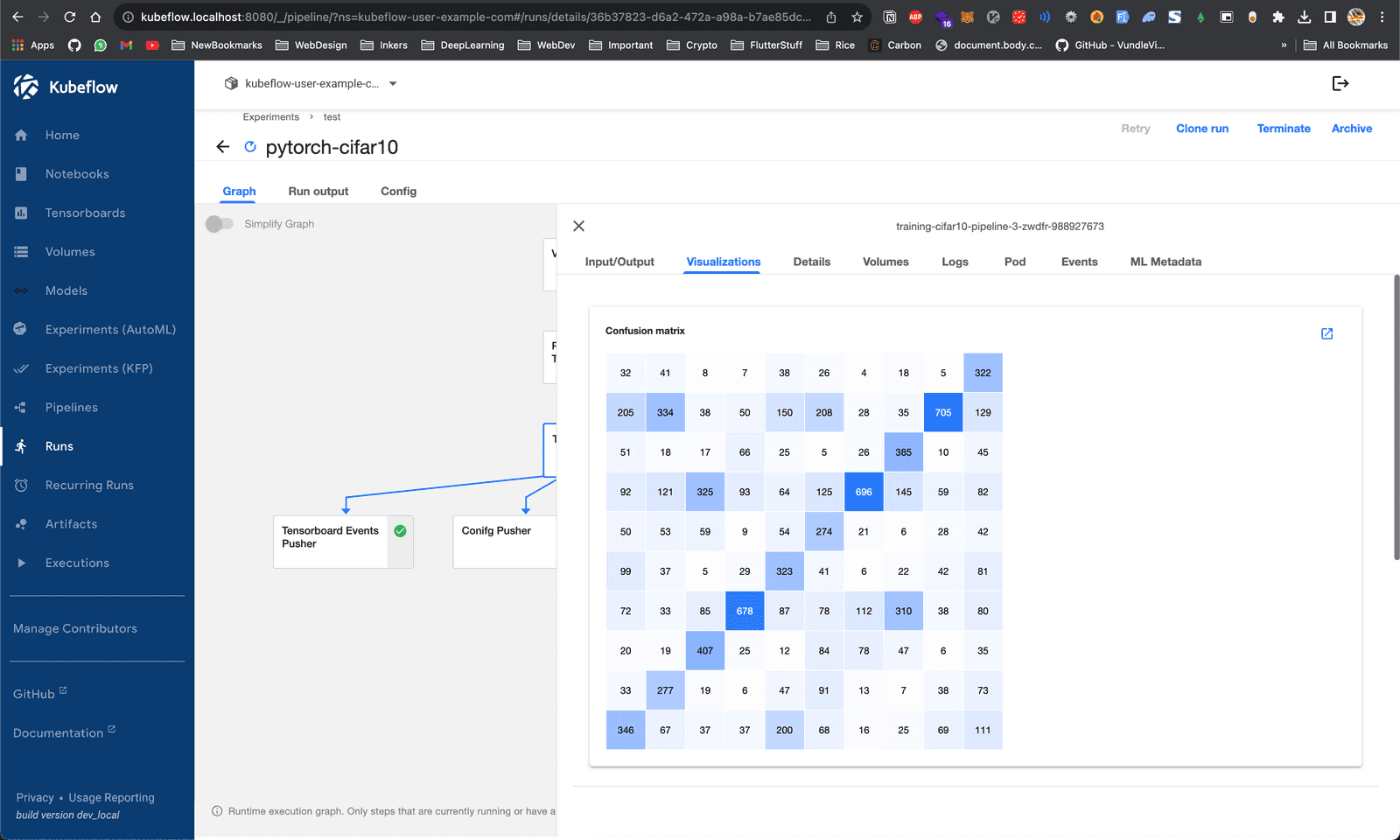

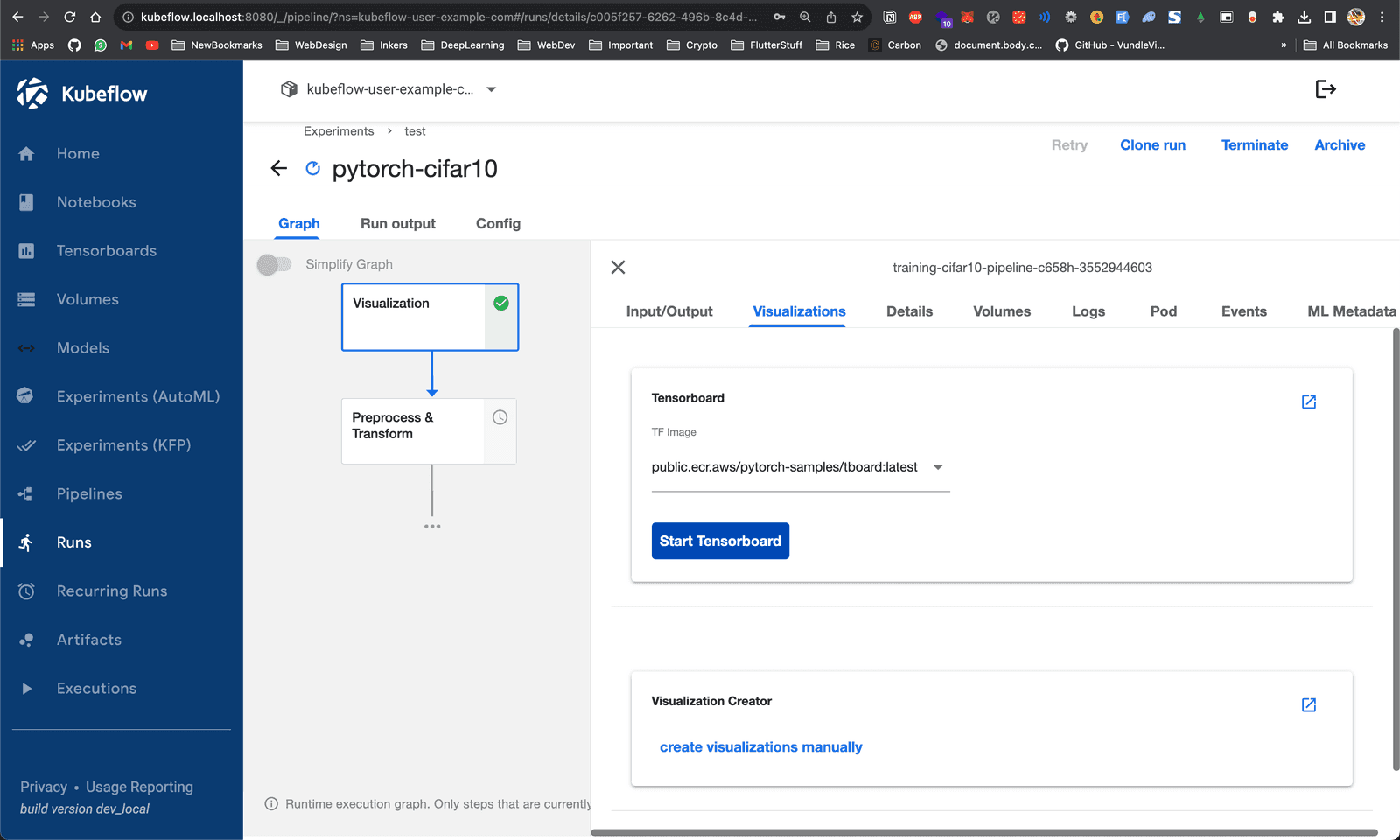

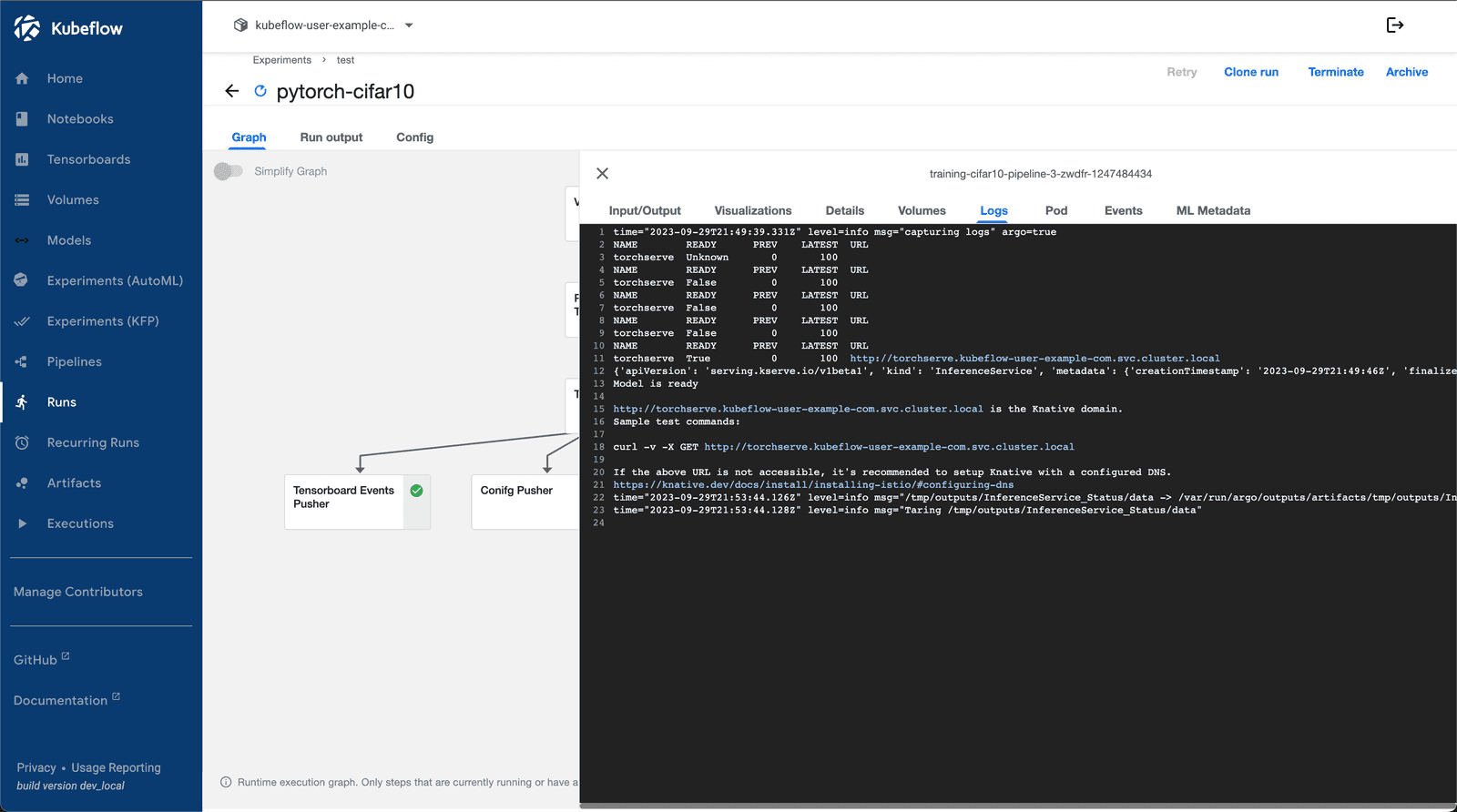

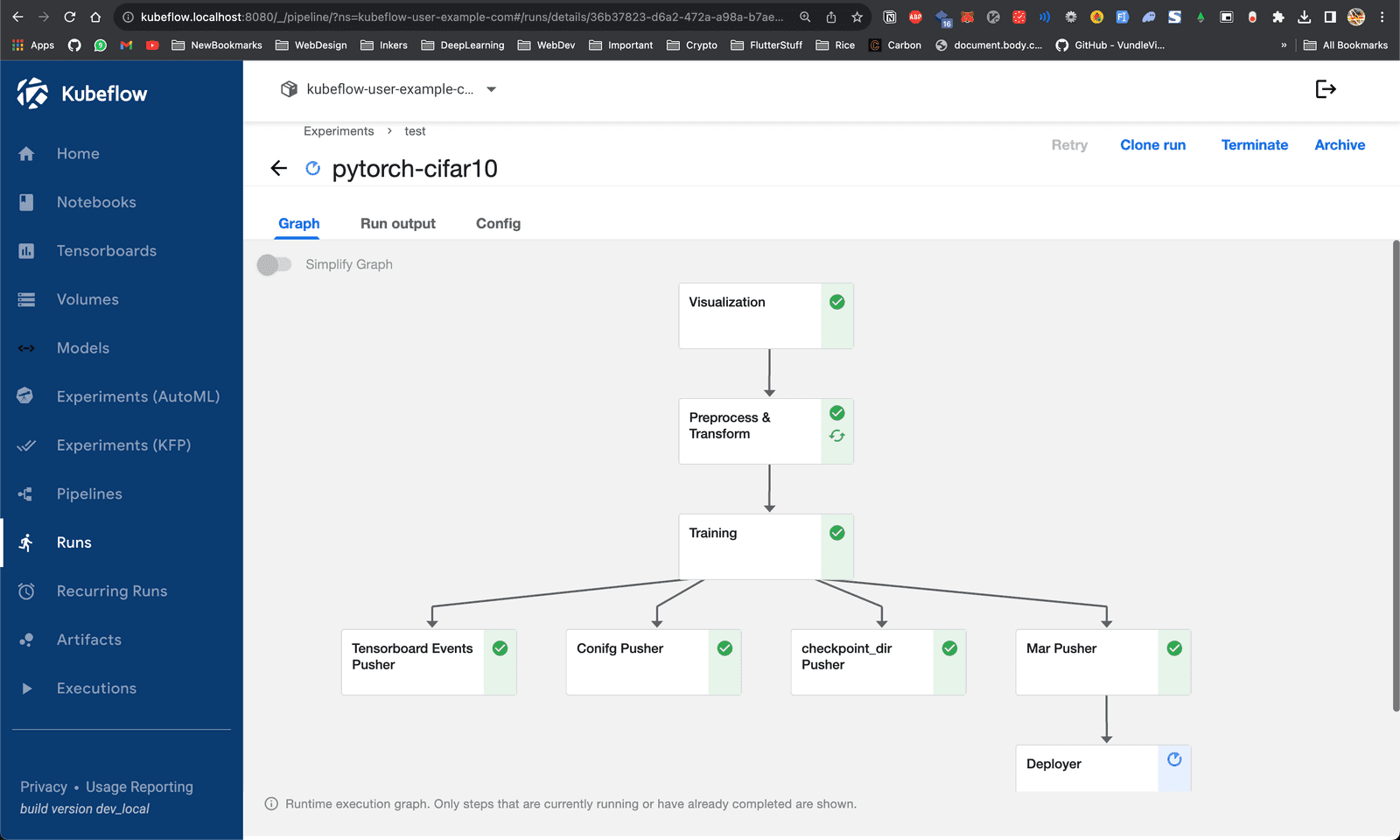

Kubeflow Pipelines

https://www.kubeflow.org/docs/components/pipelines/v1/introduction/

A pipeline in Kubeflow Pipelines is like a recipe for machine learning. It's a detailed plan that describes the steps involved in an ML workflow and how they fit together, much like the steps in a cooking recipe. Each step is called a "component," and these components are like the individual tasks in a recipe, such as chopping vegetables or simmering a sauce.

The Kubeflow Pipelines platform consists of:

  • A user interface (UI) for managing and tracking experiments, jobs, and runs.
  • An engine for scheduling multi-step ML workflows.
  • An SDK for defining and manipulating pipelines and components.
  • Notebooks for interacting with the system using the SDK.

Untitled

Key Points:

  • Workflow Description: A pipeline is a way to organize and define the various stages of a machine learning project, including data preparation, model training, and deployment.
  • Components: Each part of the pipeline is called a "component," which is a self-contained unit that performs a specific task, like data preprocessing or model training.
  • Graph Structure: The pipeline is represented as a graph, showing how components are connected and how data flows between them. This visual representation helps you understand the sequence of tasks.
  • Inputs and Outputs: The pipeline also defines what data or information each component needs as input and what it produces as output. This ensures that the different parts of the workflow can work together seamlessly.
  • Reusability: You can think of components as reusable building blocks. Once you create a component for a specific task, you can use it in different pipelines without having to recreate it every time.
  • Sharing: After creating a pipeline, you can share it with others using the Kubeflow Pipelines user interface, just like sharing a recipe with friends.

Kubeflow Pipeline SDK

https://kubeflow-pipelines.readthedocs.io/en/sdk-2.0.1/

https://kubeflow-pipelines.readthedocs.io/en/1.8.20/

Kubeflow Vanilla Installation on EKS

Create a EKS Cluster with 5 x t3a.medium nodes

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
iam:
  withOIDC: true

metadata:
  name: basic-cluster
  region: ap-south-1
  version: "1.25"

managedNodeGroups:
  - name: ng-dedicated-1
    instanceType: t3a.medium
    desiredCapacity: 1
    ssh:
      allow: true # will use ~/.ssh/id_rsa.pub as the default ssh key
    iam:
      withAddonPolicies:
        autoScaler: true
        awsLoadBalancerController: true
        certManager: true
        externalDNS: true
        ebs: true
        efs: true
        cloudWatch: true
  - name: ng-spot-1
    instanceType: t3a.medium
    desiredCapacity: 5
    ssh:
      allow: true # will use ~/.ssh/id_rsa.pub as the default ssh key
    spot: true
    labels:
      role: spot
    propagateASGTags: true
    iam:
      withAddonPolicies:
        autoScaler: true
        awsLoadBalancerController: true
        certManager: true
        externalDNS: true
        ebs: true
        efs: true
        cloudWatch: true
  # - name: ng-dedicated-model
  #   instanceType: t3a.2xlarge
  #   desiredCapacity: 1
  #   ssh:
  #     allow: true # will use ~/.ssh/id_rsa.pub as the default ssh key
  #   iam:
  #     withAddonPolicies:
  #       autoScaler: true
  #       ebs: true
  #       efs: true
  #       awsLoadBalancerController: true

Use GitPod or any Linux based System, as the Installation scripts will only work on Ubuntu

Install Python3.8

sudo add-apt-repository ppa:deadsnakes/ppa -y
sudo apt-get install python3.8 python3.8-distutils

Untitled

Install AWS CLI and AWS IAM Authenticator

curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
unzip awscliv2.zip
sudo ./aws/install
curl -Lo aws-iam-authenticator https://github.com/kubernetes-sigs/aws-iam-authenticator/releases/download/v0.5.9/aws-iam-authenticator_0.5.9_linux_amd64
chmod +x ./aws-iam-authenticator
sudo cp ./aws-iam-authenticator /usr/local/bin

Configure AWS Credentials

aws configure

Update Kube config using aws cli

aws eks update-kubeconfig --name basic-cluster --region ap-south-1

Or Copy over the kube config to the instance

cat ~/.kube/config
chmod go-r ~/.kube/config
cat ~/.kube/config

Set the CLUSTER_NAME and CLUSTER_REGION, this will later be used by Kubeflow Installation

export CLUSTER_NAME=basic-cluster
export CLUSTER_REGION=ap-south-1

Make sure OIDC is enabled for your Cluster

eksctl utils associate-iam-oidc-provider --region ap-south-1 --cluster basic-cluster --approve

Install the EBS CSI Addon

First create the IRSA for EBS

eksctl create iamserviceaccount \
    --name ebs-csi-controller-sa \
    --namespace kube-system \
    --cluster basic-cluster \
    --role-name AmazonEKS_EBS_CSI_DriverRole \
    --role-only \
    --attach-policy-arn arn:aws:iam::aws:policy/service-role/AmazonEBSCSIDriverPolicy \
    --approve
eksctl create addon --name aws-ebs-csi-driver --cluster basic-cluster --service-account-role-arn arn:aws:iam::006547668672:role/AmazonEKS_EBS_CSI_DriverRole --force

Install Kubectl

https://kubernetes.io/docs/tasks/tools/install-kubectl-linux/

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl

Make sure kubectl is working

kubectl version

Install Kubeflow

export CLUSTER_NAME=basic_cluster
export CLUSTER_REGION=ap-south-1
make install-tools

Install HELM version 3.12.2

This is mostly a temporary fix, Sagemaker’s helm chart only works on this specific version of HELM

install-helm:
	wget https://get.helm.sh/helm-v3.12.2-linux-amd64.tar.gz
	tar -zxvf helm-v3.12.2-linux-amd64.tar.gz
	sudo mv linux-amd64/helm /usr/local/bin/helm
	helm version

Deploy Kubeflow!

export KUBEFLOW_RELEASE_VERSION=v1.7.0
export AWS_RELEASE_VERSION=v1.7.0-aws-b1.0.3
git clone https://github.com/awslabs/kubeflow-manifests.git && cd kubeflow-manifests
git checkout ${AWS_RELEASE_VERSION}
git clone --branch ${KUBEFLOW_RELEASE_VERSION} https://github.com/kubeflow/manifests.git upstream

We’re installing Kubeflow 1.7 which is the latest stable release of Kubeflow

https://www.kubeflow.org/docs/releases/kubeflow-1.7/

This will be the most time consuming step, patience!

ETA: ~15 mins

make deploy-kubeflow INSTALLATION_OPTION=helm DEPLOYMENT_OPTION=vanilla
k get all -A
❯ k get pvc -A
NAMESPACE      NAME              STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
istio-system   authservice-pvc   Bound    pvc-b3ae1488-e1f0-4eec-8f0d-7b69122cb302   10Gi       RWO            gp2            12m

After everything installed this should be the output of k get all -A

❯ k get all -A
NAMESPACE                   NAME                                                           READY   STATUS             RESTARTS      AGE
ack-system                  pod/ack-sagemaker-controller-sagemaker-chart-8588ffbb6-w6bsx   0/1     CrashLoopBackOff   1 (5s ago)    20s
auth                        pod/dex-56d9748f89-nq6jg                                       1/1     Running            0             59m
cert-manager                pod/cert-manager-5958fd9d8d-bjhb8                              1/1     Running            0             60m
cert-manager                pod/cert-manager-cainjector-7999df5dbc-ftsmn                   1/1     Running            0             60m
cert-manager                pod/cert-manager-webhook-7f8f79d49c-x2sxg                      1/1     Running            0             60m
istio-system                pod/authservice-0                                              1/1     Running            0             58m
istio-system                pod/cluster-local-gateway-6955b67f54-5jsh7                     1/1     Running            0             58m
istio-system                pod/istio-ingressgateway-67f7b5f88d-wv4jg                      1/1     Running            0             59m
istio-system                pod/istiod-56f7cf9bd6-76vrw                                    1/1     Running            0             59m
knative-eventing            pod/eventing-controller-c6f5fd6cd-4ssbd                        1/1     Running            0             56m
knative-eventing            pod/eventing-webhook-79cd6767-vcxwf                            1/1     Running            0             56m
knative-serving             pod/activator-67849589d6-kqdkh                                 2/2     Running            0             57m
knative-serving             pod/autoscaler-6dbcdd95c7-cgcq4                                2/2     Running            0             57m
knative-serving             pod/controller-b9b8855b8-nzvc5                                 2/2     Running            0             57m
knative-serving             pod/domain-mapping-75cc6d667f-f4h7m                            2/2     Running            0             57m
knative-serving             pod/domainmapping-webhook-6dfb78c944-pgn8d                     2/2     Running            0             57m
knative-serving             pod/net-istio-controller-5fcd96d76f-vb69s                      2/2     Running            0             57m
knative-serving             pod/net-istio-webhook-7ff9fdf999-tsw8j                         2/2     Running            0             57m
knative-serving             pod/webhook-69cc5b9849-rzj7v                                   2/2     Running            0             57m
kube-system                 pod/aws-node-6z6hw                                             1/1     Running            0             83m
kube-system                 pod/aws-node-bnbml                                             1/1     Running            0             42m
kube-system                 pod/aws-node-dhhbg                                             1/1     Running            0             83m
kube-system                 pod/aws-node-flbch                                             1/1     Running            0             82m
kube-system                 pod/aws-node-x56rv                                             1/1     Running            0             42m
kube-system                 pod/coredns-6db85c8f99-cjsmj                                   1/1     Running            0             89m
kube-system                 pod/coredns-6db85c8f99-pchw4                                   1/1     Running            0             89m
kube-system                 pod/ebs-csi-controller-5644545854-26klr                        6/6     Running            0             73m
kube-system                 pod/ebs-csi-controller-5644545854-ph7fb                        6/6     Running            0             73m
kube-system                 pod/ebs-csi-node-4fl42                                         3/3     Running            0             42m
kube-system                 pod/ebs-csi-node-57d88                                         3/3     Running            0             42m
kube-system                 pod/ebs-csi-node-flhdh                                         3/3     Running            0             73m
kube-system                 pod/ebs-csi-node-m9krs                                         3/3     Running            0             73m
kube-system                 pod/ebs-csi-node-mf8nr                                         3/3     Running            0             73m
kube-system                 pod/kube-proxy-4brft                                           1/1     Running            0             83m
kube-system                 pod/kube-proxy-hcnmq                                           1/1     Running            0             82m
kube-system                 pod/kube-proxy-m57wp                                           1/1     Running            0             42m
kube-system                 pod/kube-proxy-q4sj2                                           1/1     Running            0             83m
kube-system                 pod/kube-proxy-vp9g4                                           1/1     Running            0             42m
kube-system                 pod/metrics-server-5b4fc487-pv442                              1/1     Running            0             33m
kubeflow-user-example-com   pod/ml-pipeline-ui-artifact-6cb7b9f6fd-5r44w                   2/2     Running            0             36m
kubeflow-user-example-com   pod/ml-pipeline-visualizationserver-7b5889796d-6mxm6           2/2     Running            0             36m
kubeflow                    pod/admission-webhook-deployment-6db8bdbb45-w46rx              1/1     Running            0             51m
kubeflow                    pod/cache-server-76cb8f97f9-p8v2r                              2/2     Running            0             53m
kubeflow                    pod/centraldashboard-655c7d894c-6jw4j                          2/2     Running            0             54m
kubeflow                    pod/jupyter-web-app-deployment-76fbf48ff6-2snmx                2/2     Running            0             50m
kubeflow                    pod/katib-controller-8bb4fdf4f-4wxnh                           1/1     Running            0             39m
kubeflow                    pod/katib-db-manager-f8dc7f465-2rc5t                           1/1     Running            0             39m
kubeflow                    pod/katib-mysql-db6dc68c-wts27                                 1/1     Running            0             39m
kubeflow                    pod/katib-ui-7859bc4c67-7lrzr                                  2/2     Running            2 (39m ago)   39m
kubeflow                    pod/kserve-controller-manager-85b6b6c47d-rhjlz                 2/2     Running            0             55m
kubeflow                    pod/kserve-models-web-app-8875bbdf8-w4wjk                      2/2     Running            0             54m
kubeflow                    pod/kubeflow-pipelines-profile-controller-59ccbd47b9-cf2np     1/1     Running            0             53m
kubeflow                    pod/metacontroller-0                                           1/1     Running            0             53m
kubeflow                    pod/metadata-envoy-deployment-5b6c575b98-47hr9                 1/1     Running            0             53m
kubeflow                    pod/metadata-grpc-deployment-784b8b5fb4-fzlck                  2/2     Running            4 (51m ago)   53m
kubeflow                    pod/metadata-writer-5899c74595-bmcpn                           2/2     Running            0             53m
kubeflow                    pod/minio-65dff76b66-r8vjw                                     2/2     Running            0             53m
kubeflow                    pod/ml-pipeline-cff8bdfff-fc9sg                                2/2     Running            1 (51m ago)   53m
kubeflow                    pod/ml-pipeline-persistenceagent-798dbf666f-flbbr              2/2     Running            0             53m
kubeflow                    pod/ml-pipeline-scheduledworkflow-859ff9cf7b-nqdv7             2/2     Running            0             53m
kubeflow                    pod/ml-pipeline-ui-6d69549787-4td2t                            2/2     Running            0             53m
kubeflow                    pod/ml-pipeline-viewer-crd-56f7cfd7d9-cg4nq                    2/2     Running            1 (53m ago)   53m
kubeflow                    pod/ml-pipeline-visualizationserver-64447ffc76-g27ln           2/2     Running            0             53m
kubeflow                    pod/mysql-c999c6c8-6kh42                                       2/2     Running            0             53m
kubeflow                    pod/notebook-controller-deployment-5c9bc58599-fz445            2/2     Running            2 (42m ago)   50m
kubeflow                    pod/profiles-deployment-786df9d89d-nh6sp                       3/3     Running            2 (37m ago)   37m
kubeflow                    pod/tensorboard-controller-deployment-6664b8866f-w24bf         3/3     Running            2 (38m ago)   38m
kubeflow                    pod/tensorboards-web-app-deployment-5cb4666798-rwbg8           2/2     Running            0             39m
kubeflow                    pod/training-operator-7589458f95-s86qb                         1/1     Running            0             40m
kubeflow                    pod/volumes-web-app-deployment-59cf57d887-kbnh4                2/2     Running            0             41m
kubeflow                    pod/workflow-controller-6547f784cd-k9df9                       2/2     Running            1 (53m ago)   53m
kubernetes-dashboard        pod/kubernetes-dashboard-c6f5bfb9-59lcq                        1/1     Running            0             32m

NAMESPACE                   NAME                                                                TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                                        AGE
auth                        service/dex                                                         ClusterIP   10.100.158.141   <none>        5556/TCP                                       59m
cert-manager                service/cert-manager                                                ClusterIP   10.100.225.57    <none>        9402/TCP                                       60m
cert-manager                service/cert-manager-webhook                                        ClusterIP   10.100.227.213   <none>        443/TCP                                        60m
default                     service/kubernetes                                                  ClusterIP   10.100.0.1       <none>        443/TCP                                        90m
istio-system                service/authservice                                                 ClusterIP   10.100.242.233   <none>        8080/TCP                                       58m
istio-system                service/cluster-local-gateway                                       ClusterIP   10.100.84.90     <none>        15020/TCP,80/TCP                               58m
istio-system                service/istio-ingressgateway                                        ClusterIP   10.100.57.138    <none>        15021/TCP,80/TCP,443/TCP,31400/TCP,15443/TCP   59m
istio-system                service/istiod                                                      ClusterIP   10.100.112.130   <none>        15010/TCP,15012/TCP,443/TCP,15014/TCP          59m
istio-system                service/knative-local-gateway                                       ClusterIP   10.100.164.185   <none>        80/TCP                                         57m
knative-eventing            service/eventing-webhook                                            ClusterIP   10.100.84.238    <none>        443/TCP                                        56m
knative-serving             service/activator-service                                           ClusterIP   10.100.25.166    <none>        9090/TCP,8008/TCP,80/TCP,81/TCP,443/TCP        57m
knative-serving             service/autoscaler                                                  ClusterIP   10.100.133.230   <none>        9090/TCP,8008/TCP,8080/TCP                     57m
knative-serving             service/autoscaler-bucket-00-of-01                                  ClusterIP   10.100.7.38      <none>        8080/TCP                                       56m
knative-serving             service/controller                                                  ClusterIP   10.100.41.151    <none>        9090/TCP,8008/TCP                              57m
knative-serving             service/domainmapping-webhook                                       ClusterIP   10.100.206.178   <none>        9090/TCP,8008/TCP,443/TCP                      57m
knative-serving             service/net-istio-webhook                                           ClusterIP   10.100.51.249    <none>        9090/TCP,8008/TCP,443/TCP                      57m
knative-serving             service/webhook                                                     ClusterIP   10.100.54.81     <none>        9090/TCP,8008/TCP,443/TCP                      57m
kube-system                 service/kube-dns                                                    ClusterIP   10.100.0.10      <none>        53/UDP,53/TCP                                  89m
kube-system                 service/metrics-server                                              ClusterIP   10.100.118.238   <none>        443/TCP                                        33m
kubeflow-user-example-com   service/ml-pipeline-ui-artifact                                     ClusterIP   10.100.84.177    <none>        80/TCP                                         36m
kubeflow-user-example-com   service/ml-pipeline-visualizationserver                             ClusterIP   10.100.189.195   <none>        8888/TCP                                       36m
kubeflow                    service/admission-webhook-service                                   ClusterIP   10.100.95.2      <none>        443/TCP                                        51m
kubeflow                    service/cache-server                                                ClusterIP   10.100.53.90     <none>        443/TCP                                        53m
kubeflow                    service/centraldashboard                                            ClusterIP   10.100.155.30    <none>        80/TCP                                         54m
kubeflow                    service/jupyter-web-app-service                                     ClusterIP   10.100.253.106   <none>        80/TCP                                         50m
kubeflow                    service/katib-controller                                            ClusterIP   10.100.185.119   <none>        443/TCP,8080/TCP,18080/TCP                     39m
kubeflow                    service/katib-db-manager                                            ClusterIP   10.100.192.202   <none>        6789/TCP                                       39m
kubeflow                    service/katib-mysql                                                 ClusterIP   10.100.241.103   <none>        3306/TCP                                       39m
kubeflow                    service/katib-ui                                                    ClusterIP   10.100.181.25    <none>        80/TCP                                         39m
kubeflow                    service/kserve-controller-manager-metrics-service                   ClusterIP   10.100.110.165   <none>        8443/TCP                                       55m
kubeflow                    service/kserve-controller-manager-service                           ClusterIP   10.100.133.218   <none>        8443/TCP                                       55m
kubeflow                    service/kserve-models-web-app                                       ClusterIP   10.100.104.0     <none>        80/TCP                                         54m
kubeflow                    service/kserve-webhook-server-service                               ClusterIP   10.100.151.215   <none>        443/TCP                                        55m
kubeflow                    service/kubeflow-pipelines-profile-controller                       ClusterIP   10.100.225.35    <none>        80/TCP                                         53m
kubeflow                    service/metadata-envoy-service                                      ClusterIP   10.100.28.138    <none>        9090/TCP                                       53m
kubeflow                    service/metadata-grpc-service                                       ClusterIP   10.100.23.118    <none>        8080/TCP                                       53m
kubeflow                    service/minio-service                                               ClusterIP   10.100.145.220   <none>        9000/TCP                                       53m
kubeflow                    service/ml-pipeline                                                 ClusterIP   10.100.231.86    <none>        8888/TCP,8887/TCP                              53m
kubeflow                    service/ml-pipeline-ui                                              ClusterIP   10.100.144.69    <none>        80/TCP                                         53m
kubeflow                    service/ml-pipeline-visualizationserver                             ClusterIP   10.100.97.49     <none>        8888/TCP                                       53m
kubeflow                    service/mysql                                                       ClusterIP   10.100.185.41    <none>        3306/TCP                                       53m
kubeflow                    service/notebook-controller-service                                 ClusterIP   10.100.173.193   <none>        443/TCP                                        50m
kubeflow                    service/profiles-kfam                                               ClusterIP   10.100.214.203   <none>        8081/TCP                                       37m
kubeflow                    service/tensorboard-controller-controller-manager-metrics-service   ClusterIP   10.100.41.34     <none>        8443/TCP                                       38m
kubeflow                    service/tensorboards-web-app-service                                ClusterIP   10.100.213.188   <none>        80/TCP                                         39m
kubeflow                    service/training-operator                                           ClusterIP   10.100.200.255   <none>        8080/TCP                                       40m
kubeflow                    service/volumes-web-app-service                                     ClusterIP   10.100.11.254    <none>        80/TCP                                         41m
kubeflow                    service/workflow-controller-metrics                                 ClusterIP   10.100.230.114   <none>        9090/TCP                                       53m
kubernetes-dashboard        service/kubernetes-dashboard                                        ClusterIP   10.100.191.248   <none>        443/TCP                                        32m

NAMESPACE     NAME                                  DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR              AGE
kube-system   daemonset.apps/aws-node               5         5         5       5            5           <none>                     89m
kube-system   daemonset.apps/ebs-csi-node           5         5         5       5            5           kubernetes.io/os=linux     73m
kube-system   daemonset.apps/ebs-csi-node-windows   0         0         0       0            0           kubernetes.io/os=windows   73m
kube-system   daemonset.apps/kube-proxy             5         5         5       5            5           <none>                     89m

NAMESPACE                   NAME                                                       READY   UP-TO-DATE   AVAILABLE   AGE
ack-system                  deployment.apps/ack-sagemaker-controller-sagemaker-chart   0/1     1            0           20s
auth                        deployment.apps/dex                                        1/1     1            1           59m
cert-manager                deployment.apps/cert-manager                               1/1     1            1           60m
cert-manager                deployment.apps/cert-manager-cainjector                    1/1     1            1           60m
cert-manager                deployment.apps/cert-manager-webhook                       1/1     1            1           60m
istio-system                deployment.apps/cluster-local-gateway                      1/1     1            1           58m
istio-system                deployment.apps/istio-ingressgateway                       1/1     1            1           59m
istio-system                deployment.apps/istiod                                     1/1     1            1           59m
knative-eventing            deployment.apps/eventing-controller                        1/1     1            1           56m
knative-eventing            deployment.apps/eventing-webhook                           1/1     1            1           56m
knative-eventing            deployment.apps/pingsource-mt-adapter                      0/0     0            0           56m
knative-serving             deployment.apps/activator                                  1/1     1            1           57m
knative-serving             deployment.apps/autoscaler                                 1/1     1            1           57m
knative-serving             deployment.apps/controller                                 1/1     1            1           57m
knative-serving             deployment.apps/domain-mapping                             1/1     1            1           57m
knative-serving             deployment.apps/domainmapping-webhook                      1/1     1            1           57m
knative-serving             deployment.apps/net-istio-controller                       1/1     1            1           57m
knative-serving             deployment.apps/net-istio-webhook                          1/1     1            1           57m
knative-serving             deployment.apps/webhook                                    1/1     1            1           57m
kube-system                 deployment.apps/coredns                                    2/2     2            2           89m
kube-system                 deployment.apps/ebs-csi-controller                         2/2     2            2           73m
kube-system                 deployment.apps/metrics-server                             1/1     1            1           33m
kubeflow-user-example-com   deployment.apps/ml-pipeline-ui-artifact                    1/1     1            1           36m
kubeflow-user-example-com   deployment.apps/ml-pipeline-visualizationserver            1/1     1            1           36m
kubeflow                    deployment.apps/admission-webhook-deployment               1/1     1            1           51m
kubeflow                    deployment.apps/cache-server                               1/1     1            1           53m
kubeflow                    deployment.apps/centraldashboard                           1/1     1            1           54m
kubeflow                    deployment.apps/jupyter-web-app-deployment                 1/1     1            1           50m
kubeflow                    deployment.apps/katib-controller                           1/1     1            1           39m
kubeflow                    deployment.apps/katib-db-manager                           1/1     1            1           39m
kubeflow                    deployment.apps/katib-mysql                                1/1     1            1           39m
kubeflow                    deployment.apps/katib-ui                                   1/1     1            1           39m
kubeflow                    deployment.apps/kserve-controller-manager                  1/1     1            1           55m
kubeflow                    deployment.apps/kserve-models-web-app                      1/1     1            1           54m
kubeflow                    deployment.apps/kubeflow-pipelines-profile-controller      1/1     1            1           53m
kubeflow                    deployment.apps/metadata-envoy-deployment                  1/1     1            1           53m
kubeflow                    deployment.apps/metadata-grpc-deployment                   1/1     1            1           53m
kubeflow                    deployment.apps/metadata-writer                            1/1     1            1           53m
kubeflow                    deployment.apps/minio                                      1/1     1            1           53m
kubeflow                    deployment.apps/ml-pipeline                                1/1     1            1           53m
kubeflow                    deployment.apps/ml-pipeline-persistenceagent               1/1     1            1           53m
kubeflow                    deployment.apps/ml-pipeline-scheduledworkflow              1/1     1            1           53m
kubeflow                    deployment.apps/ml-pipeline-ui                             1/1     1            1           53m
kubeflow                    deployment.apps/ml-pipeline-viewer-crd                     1/1     1            1           53m
kubeflow                    deployment.apps/ml-pipeline-visualizationserver            1/1     1            1           53m
kubeflow                    deployment.apps/mysql                                      1/1     1            1           53m
kubeflow                    deployment.apps/notebook-controller-deployment             1/1     1            1           50m
kubeflow                    deployment.apps/profiles-deployment                        1/1     1            1           37m
kubeflow                    deployment.apps/tensorboard-controller-deployment          1/1     1            1           38m
kubeflow                    deployment.apps/tensorboards-web-app-deployment            1/1     1            1           39m
kubeflow                    deployment.apps/training-operator                          1/1     1            1           40m
kubeflow                    deployment.apps/volumes-web-app-deployment                 1/1     1            1           41m
kubeflow                    deployment.apps/workflow-controller                        1/1     1            1           53m
kubernetes-dashboard        deployment.apps/kubernetes-dashboard                       1/1     1            1           32m

NAMESPACE                   NAME                                                                 DESIRED   CURRENT   READY   AGE
ack-system                  replicaset.apps/ack-sagemaker-controller-sagemaker-chart-8588ffbb6   1         1         0       20s
auth                        replicaset.apps/dex-56d9748f89                                       1         1         1       59m
cert-manager                replicaset.apps/cert-manager-5958fd9d8d                              1         1         1       60m
cert-manager                replicaset.apps/cert-manager-cainjector-7999df5dbc                   1         1         1       60m
cert-manager                replicaset.apps/cert-manager-webhook-7f8f79d49c                      1         1         1       60m
istio-system                replicaset.apps/cluster-local-gateway-6955b67f54                     1         1         1       58m
istio-system                replicaset.apps/istio-ingressgateway-67f7b5f88d                      1         1         1       59m
istio-system                replicaset.apps/istiod-56f7cf9bd6                                    1         1         1       59m
knative-eventing            replicaset.apps/eventing-controller-c6f5fd6cd                        1         1         1       56m
knative-eventing            replicaset.apps/eventing-webhook-79cd6767                            1         1         1       56m
knative-eventing            replicaset.apps/pingsource-mt-adapter-856fb9576b                     0         0         0       56m
knative-serving             replicaset.apps/activator-67849589d6                                 1         1         1       57m
knative-serving             replicaset.apps/autoscaler-6dbcdd95c7                                1         1         1       57m
knative-serving             replicaset.apps/controller-b9b8855b8                                 1         1         1       57m
knative-serving             replicaset.apps/domain-mapping-75cc6d667f                            1         1         1       57m
knative-serving             replicaset.apps/domainmapping-webhook-6dfb78c944                     1         1         1       57m
knative-serving             replicaset.apps/net-istio-controller-5fcd96d76f                      1         1         1       57m
knative-serving             replicaset.apps/net-istio-webhook-7ff9fdf999                         1         1         1       57m
knative-serving             replicaset.apps/webhook-69cc5b9849                                   1         1         1       57m
kube-system                 replicaset.apps/coredns-6db85c8f99                                   2         2         2       89m
kube-system                 replicaset.apps/ebs-csi-controller-5644545854                        2         2         2       73m
kube-system                 replicaset.apps/metrics-server-5b4fc487                              1         1         1       33m
kubeflow-user-example-com   replicaset.apps/ml-pipeline-ui-artifact-6cb7b9f6fd                   1         1         1       36m
kubeflow-user-example-com   replicaset.apps/ml-pipeline-visualizationserver-7b5889796d           1         1         1       36m
kubeflow                    replicaset.apps/admission-webhook-deployment-6db8bdbb45              1         1         1       51m
kubeflow                    replicaset.apps/cache-server-76cb8f97f9                              1         1         1       53m
kubeflow                    replicaset.apps/centraldashboard-655c7d894c                          1         1         1       54m
kubeflow                    replicaset.apps/jupyter-web-app-deployment-76fbf48ff6                1         1         1       50m
kubeflow                    replicaset.apps/katib-controller-8bb4fdf4f                           1         1         1       39m
kubeflow                    replicaset.apps/katib-db-manager-f8dc7f465                           1         1         1       39m
kubeflow                    replicaset.apps/katib-mysql-db6dc68c                                 1         1         1       39m
kubeflow                    replicaset.apps/katib-ui-7859bc4c67                                  1         1         1       39m
kubeflow                    replicaset.apps/kserve-controller-manager-85b6b6c47d                 1         1         1       55m
kubeflow                    replicaset.apps/kserve-models-web-app-8875bbdf8                      1         1         1       54m
kubeflow                    replicaset.apps/kubeflow-pipelines-profile-controller-59ccbd47b9     1         1         1       53m
kubeflow                    replicaset.apps/metadata-envoy-deployment-5b6c575b98                 1         1         1       53m
kubeflow                    replicaset.apps/metadata-grpc-deployment-784b8b5fb4                  1         1         1       53m
kubeflow                    replicaset.apps/metadata-writer-5899c74595                           1         1         1       53m
kubeflow                    replicaset.apps/minio-65dff76b66                                     1         1         1       53m
kubeflow                    replicaset.apps/ml-pipeline-cff8bdfff                                1         1         1       53m
kubeflow                    replicaset.apps/ml-pipeline-persistenceagent-798dbf666f              1         1         1       53m
kubeflow                    replicaset.apps/ml-pipeline-scheduledworkflow-859ff9cf7b             1         1         1       53m
kubeflow                    replicaset.apps/ml-pipeline-ui-6d69549787                            1         1         1       53m
kubeflow                    replicaset.apps/ml-pipeline-viewer-crd-56f7cfd7d9                    1         1         1       53m
kubeflow                    replicaset.apps/ml-pipeline-visualizationserver-64447ffc76           1         1         1       53m
kubeflow                    replicaset.apps/mysql-c999c6c8                                       1         1         1       53m
kubeflow                    replicaset.apps/notebook-controller-deployment-5c9bc58599            1         1         1       50m
kubeflow                    replicaset.apps/profiles-deployment-786df9d89d                       1         1         1       37m
kubeflow                    replicaset.apps/tensorboard-controller-deployment-6664b8866f         1         1         1       38m
kubeflow                    replicaset.apps/tensorboards-web-app-deployment-5cb4666798           1         1         1       39m
kubeflow                    replicaset.apps/training-operator-7589458f95                         1         1         1       40m
kubeflow                    replicaset.apps/volumes-web-app-deployment-59cf57d887                1         1         1       41m
kubeflow                    replicaset.apps/workflow-controller-6547f784cd                       1         1         1       53m
kubernetes-dashboard        replicaset.apps/kubernetes-dashboard-c6f5bfb9                        1         1         1       32m

NAMESPACE      NAME                              READY   AGE
istio-system   statefulset.apps/authservice      1/1     58m
kubeflow       statefulset.apps/metacontroller   1/1     53m

NAMESPACE          NAME                                                   REFERENCE                     TARGETS    MINPODS   MAXPODS   REPLICAS   AGE
knative-eventing   horizontalpodautoscaler.autoscaling/eventing-webhook   Deployment/eventing-webhook   10%/100%   1         5         1          56m
knative-serving    horizontalpodautoscaler.autoscaling/activator          Deployment/activator          1%/100%    1         20        1          57m
knative-serving    horizontalpodautoscaler.autoscaling/webhook            Deployment/webhook            10%/100%   1         5         1          57m

NAMESPACE   NAME                                   SCHEDULE    SUSPEND   ACTIVE   LAST SCHEDULE   AGE
kubeflow    cronjob.batch/aws-kubeflow-telemetry   0 0 * * *   False     0        <none>          12s

We don’t need the GitPod / Ubuntu Docker Container anymore!

Access Kubeflow UI

make port-forward

OR

kubectl port-forward svc/istio-ingressgateway -n istio-system 8080:80

And Open kubeflow.localhost:8080

Kubeflow Dashboard

Untitled

Notebooks

Untitled

❯ k get all -n kubeflow-user-example-com
NAME                                                   READY   STATUS      RESTARTS   AGE
pod/ml-pipeline-ui-artifact-6cb7b9f6fd-5r44w           2/2     Running     0          56m
pod/ml-pipeline-visualizationserver-7b5889796d-6mxm6   2/2     Running     0          56m
pod/test-notebook-0                                    2/2     Running     0          11m
pod/train-until-good-pipeline-vjvtn-1093820330         0/2     Completed   0          10m
pod/train-until-good-pipeline-vjvtn-1559436543         0/2     Completed   0          11m
pod/train-until-good-pipeline-vjvtn-1585005674         0/2     Completed   0          4m35s
pod/train-until-good-pipeline-vjvtn-1867516346         0/2     Completed   0          8m34s
pod/train-until-good-pipeline-vjvtn-218128270          0/2     Completed   0          9m12s
pod/train-until-good-pipeline-vjvtn-2369866318         0/2     Completed   0          9m49s
pod/train-until-good-pipeline-vjvtn-2480910040         0/2     Completed   0          6m14s
pod/train-until-good-pipeline-vjvtn-2677974974         0/2     Completed   0          5m13s
pod/train-until-good-pipeline-vjvtn-2765339483         0/2     Completed   0          11m
pod/train-until-good-pipeline-vjvtn-3173442780         0/2     Completed   0          8m12s
pod/train-until-good-pipeline-vjvtn-330288830          0/2     Completed   0          5m52s
pod/train-until-good-pipeline-vjvtn-3536688595         0/2     Completed   0          12m
pod/train-until-good-pipeline-vjvtn-878983984          0/2     Completed   0          7m33s

NAME                                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/ml-pipeline-ui-artifact           ClusterIP   10.100.84.177    <none>        80/TCP     56m
service/ml-pipeline-visualizationserver   ClusterIP   10.100.189.195   <none>        8888/TCP   56m
service/test-notebook                     ClusterIP   10.100.147.158   <none>        80/TCP     11m

NAME                                              READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/ml-pipeline-ui-artifact           1/1     1            1           56m
deployment.apps/ml-pipeline-visualizationserver   1/1     1            1           56m

NAME                                                         DESIRED   CURRENT   READY   AGE
replicaset.apps/ml-pipeline-ui-artifact-6cb7b9f6fd           1         1         1       56m
replicaset.apps/ml-pipeline-visualizationserver-7b5889796d   1         1         1       56m

NAME                             READY   AGE
statefulset.apps/test-notebook   1/1     11m

Create a New Notebook

Untitled

Set Image as public.ecr.aws/kubeflow-on-aws/notebook-servers/jupyter-pytorch:2.0.0-cpu-py310-ubuntu20.04-ec2-v1.0

You can see the resources being provisioned for our notebook

 k get all -n kubeflow-user-example-com
NAME                                                   READY   STATUS            RESTARTS   AGE
pod/cifar10-test-0                                     0/2     PodInitializing   0          54s
pod/ml-pipeline-ui-artifact-6cb7b9f6fd-ls6nr           2/2     Running           0          4m26s
pod/ml-pipeline-visualizationserver-7b5889796d-tthgs   2/2     Running           0          4m26s

NAME                                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/cifar10-test                      ClusterIP   10.100.115.179   <none>        80/TCP     57s
service/ml-pipeline-ui-artifact           ClusterIP   10.100.193.139   <none>        80/TCP     4m29s
service/ml-pipeline-visualizationserver   ClusterIP   10.100.89.182    <none>        8888/TCP   4m29s

NAME                                              READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/ml-pipeline-ui-artifact           1/1     1            1           4m29s
deployment.apps/ml-pipeline-visualizationserver   1/1     1            1           4m29s

NAME                                                         DESIRED   CURRENT   READY   AGE
replicaset.apps/ml-pipeline-ui-artifact-6cb7b9f6fd           1         1         1       4m29s
replicaset.apps/ml-pipeline-visualizationserver-7b5889796d   1         1         1       4m29s

NAME                            READY   AGE
statefulset.apps/cifar10-test   0/1     57s

A PVC is also created for the Notebook

 k get pvc -n kubeflow-user-example-com
NAME                  STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
cifar10-test-volume   Bound    pvc-85510e89-fac2-49ac-8cc8-c60ad3c6596f   10Gi       RWO            gp2            107s

Untitled

Untitled

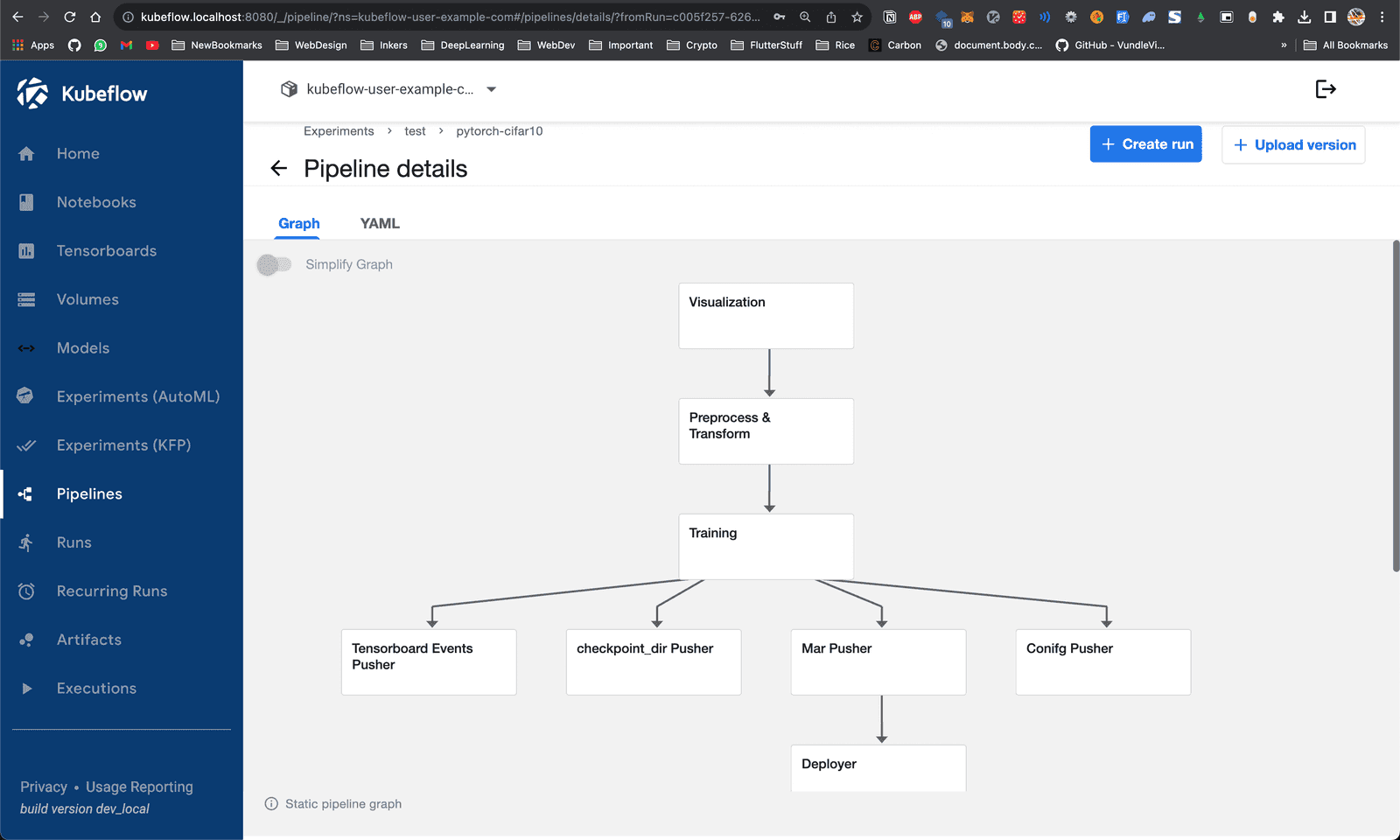

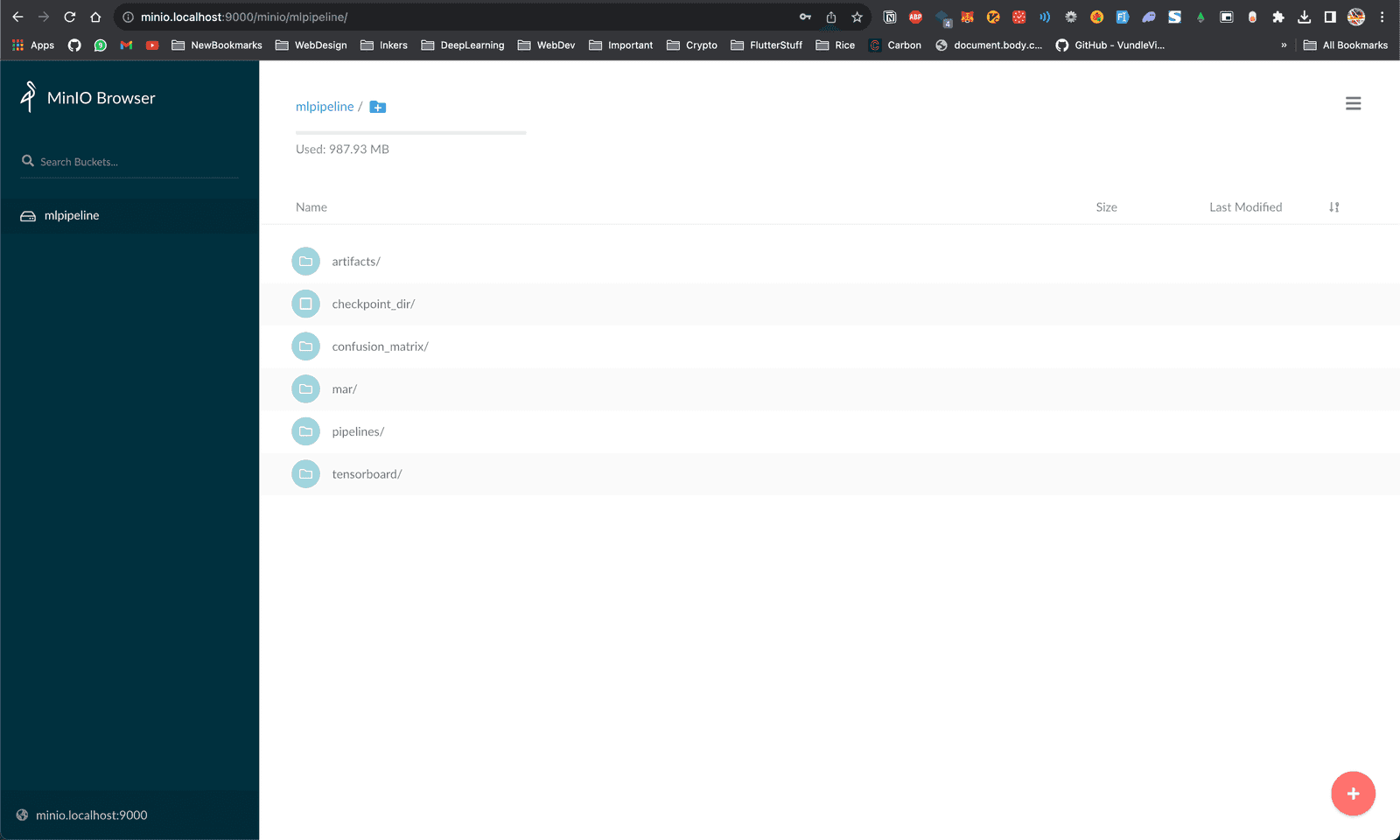

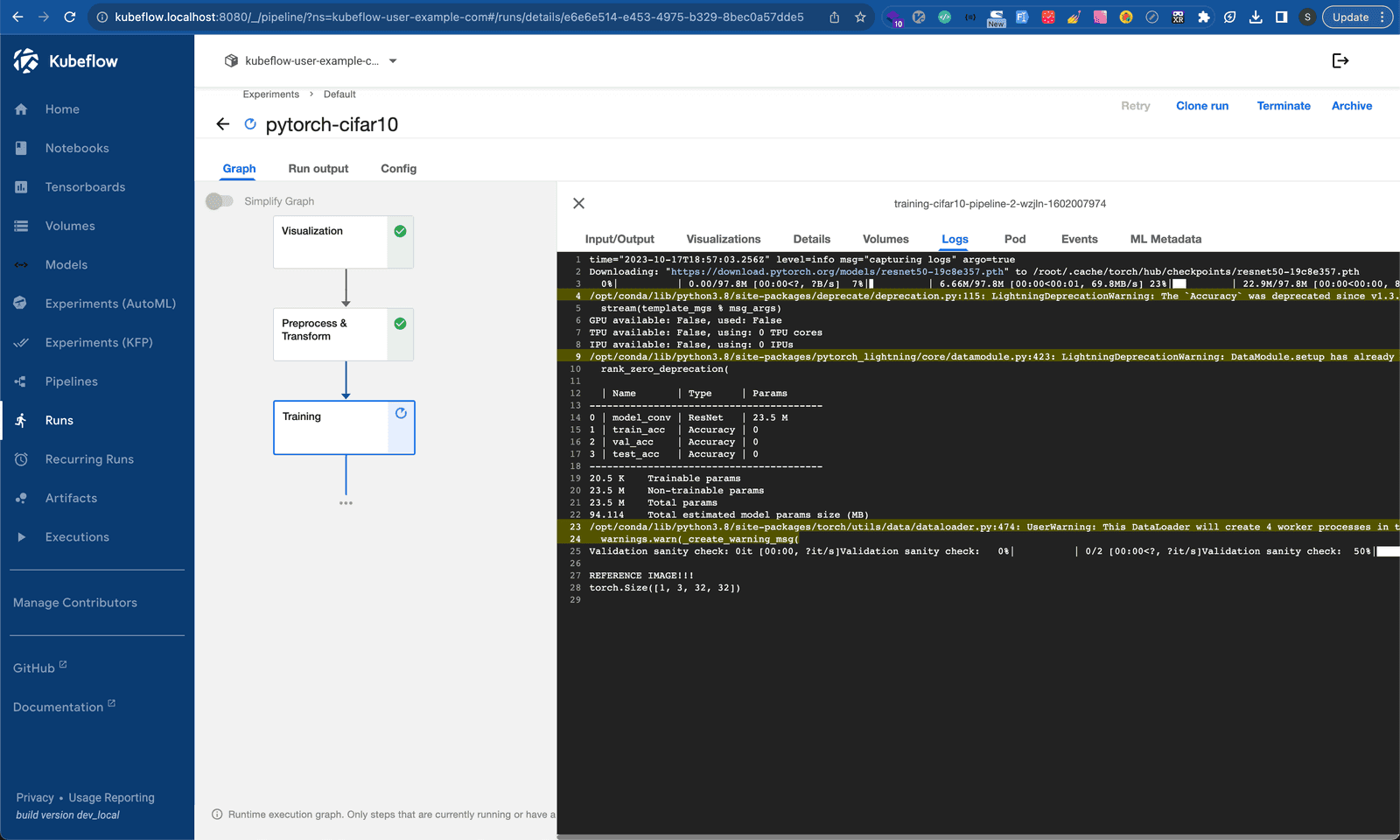

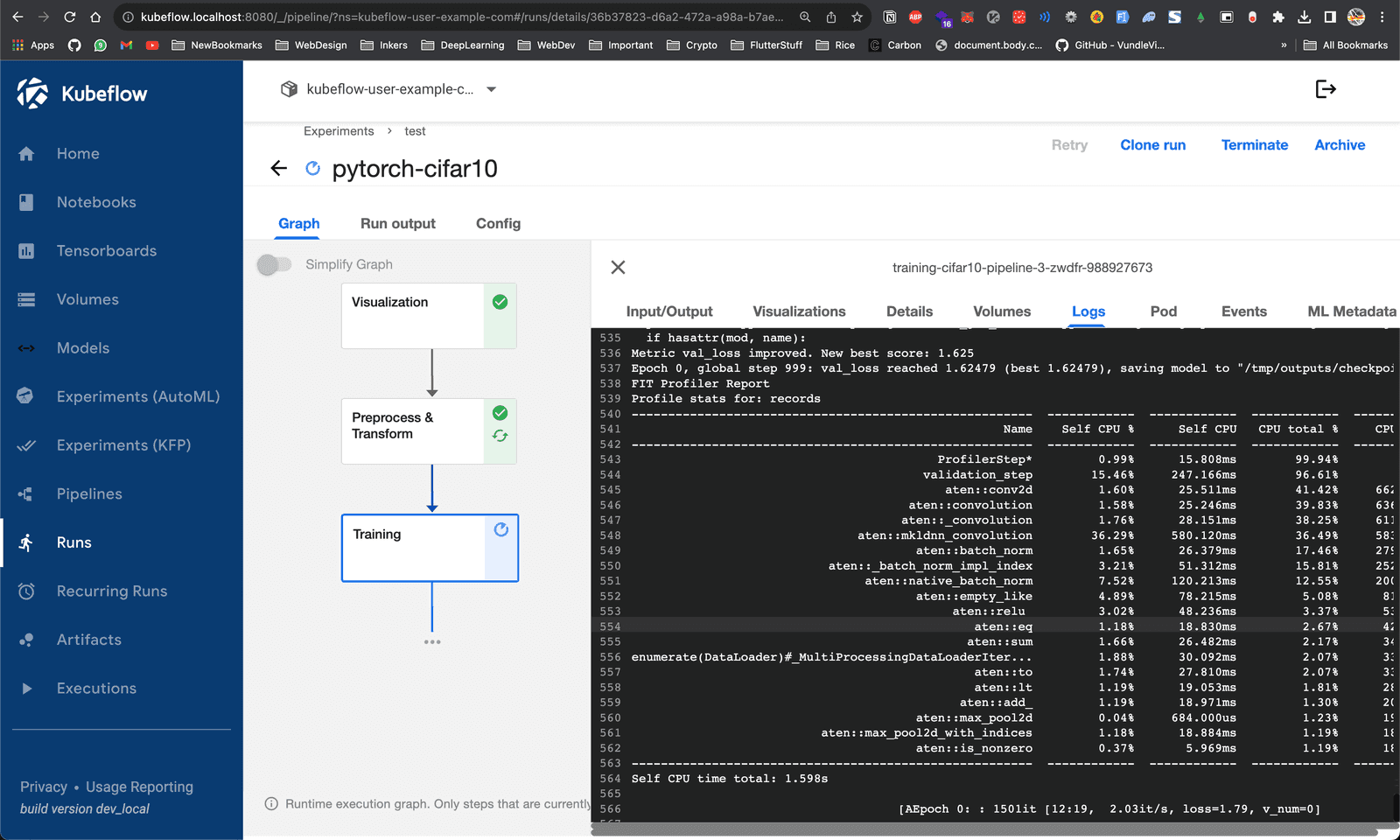

PyTorch CIFAR10 Example Pipeline

kubectl get secret mlpipeline-minio-artifact -n kubeflow -o jsonpath="{.data.accesskey}" | base64 -d
kubectl get secret mlpipeline-minio-artifact -n kubeflow -o jsonpath="{.data.secretkey}" | base64 -d

minio-secret.yaml

apiVersion: v1
kind: Secret
metadata:
  name: mysecret
  annotations:
     serving.kserve.io/s3-endpoint: minio-service.kubeflow:9000 # replace with your s3 endpoint
     serving.kserve.io/s3-usehttps: "0" # by default 1, for testing with minio you need to set to 0
     serving.kserve.io/s3-region: "minio" # replace with the region the bucket is created in
     serving.kserve.io/s3-useanoncredential: "false" # omitting this is the same as false, if true will ignore credential provided and use anonymous credentials
type: Opaque
data:
  AWS_ACCESS_KEY_ID: bWluaW8= # replace with your base64 encoded minio credential
  AWS_SECRET_ACCESS_KEY: bWluaW8xMjM= # replace with your base64 encoded minio credential
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: sa
secrets:
  - name: mysecret
k apply -f minio-secret.yaml -n kubeflow-user-example-com
! git clone https://github.com/kubeflow/pipelines

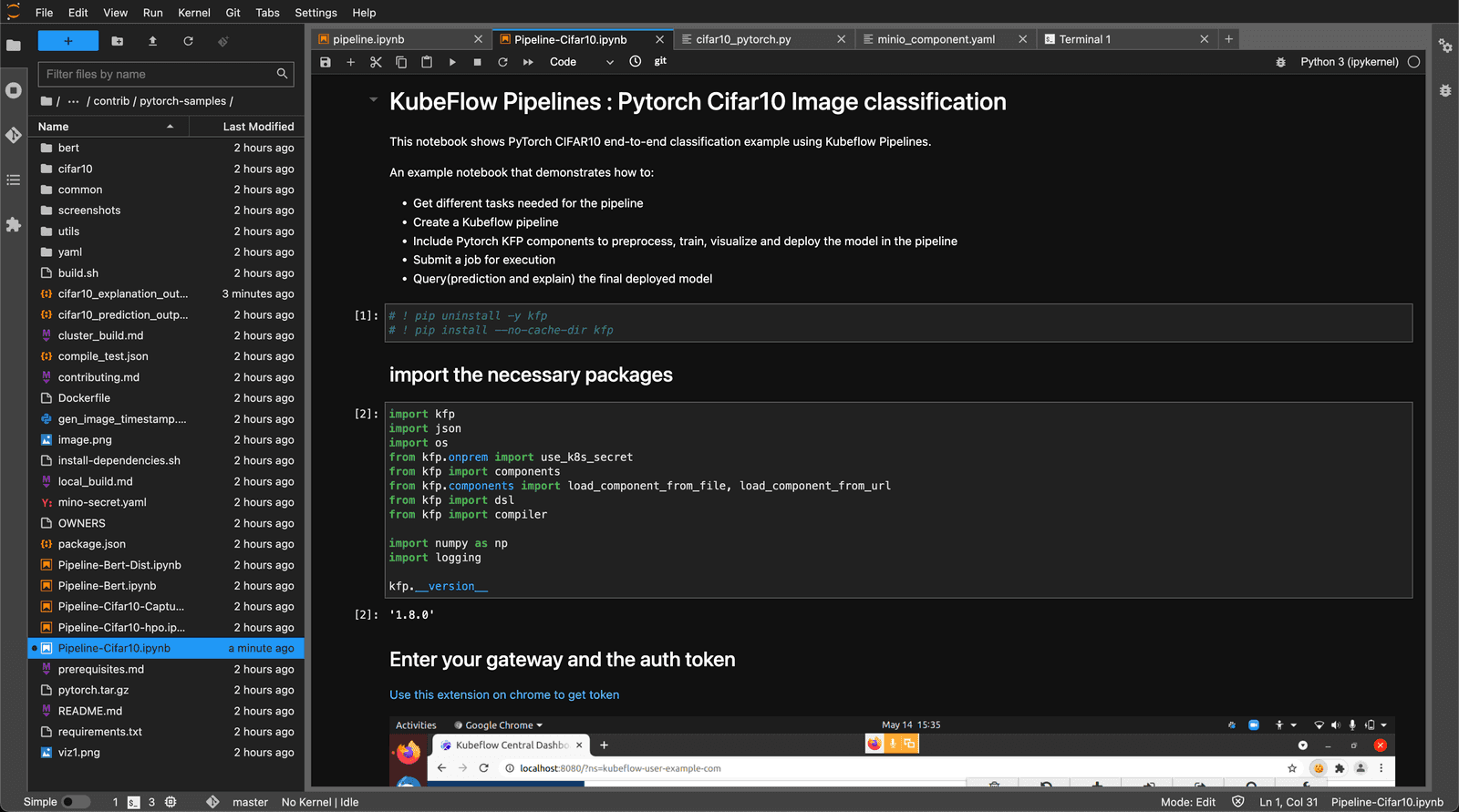

Open pipelines/samples/contrib/pytorch-samples/Pipeline-Cifar10.ipynb

Untitled

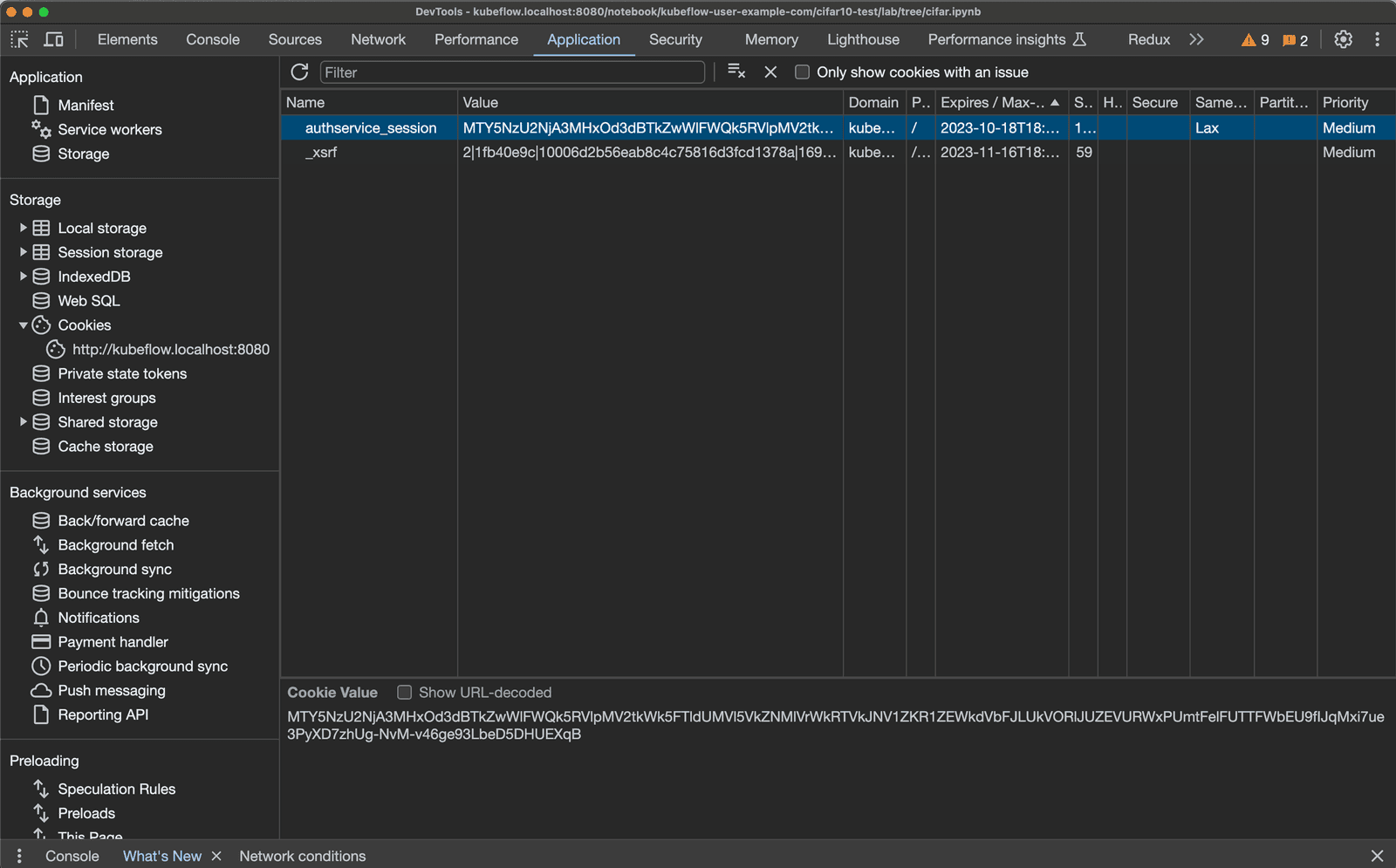

Add the AUTH from Cookies

Untitled

INGRESS_GATEWAY='http://istio-ingressgateway.istio-system.svc.cluster.local'
AUTH="MTY5NjAxOTAxMXxOd3dBTkZaSFEwSTBSbFJHTTBOTVYxazFUVXBXVlZsWVVESkdWRFZFVVZKYVZVNWFRMHBZUVVaTVRraGFWMEkxUlVrek4weFhSMEU9fB2VxDBTpBnVfpHM6HWrqCSbeM-kxjVs7B_ODAnRCd42"
NAMESPACE="kubeflow-user-example-com"
COOKIE="authservice_session="+AUTH
EXPERIMENT="Default"

Make sure that you don’t uninstall the existing kfp that comes preinstalled!

kfp=='1.8.20'
! python utils/generate_templates.py cifar10/template_mapping.json

This will generate all the YAML config files needed to define the pipeline

Untitled

We are not using all the yaml files

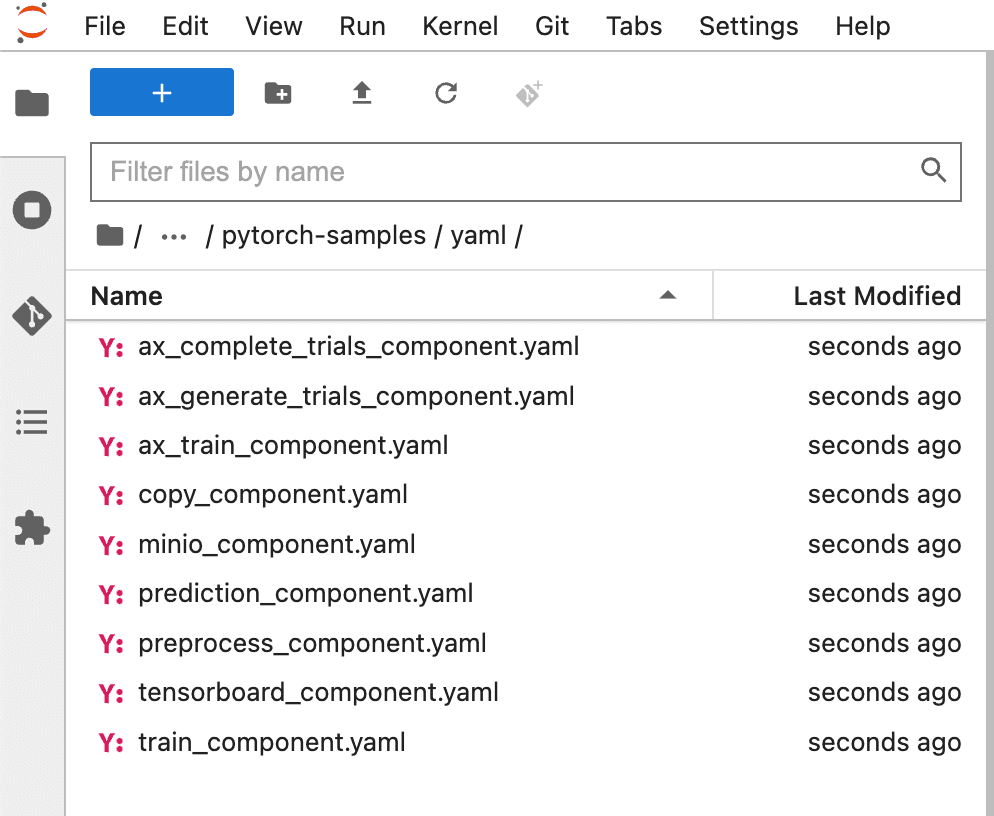

Go through the notebook

preprocess_component.yaml

description: 'Prepare data for PyTorch training.

  '
implementation:
  container:
    args:
    - --output_path
    - outputPath: output_data
    - --mlpipeline_ui_metadata
    - outputPath: MLPipeline UI Metadata
    command:
    - python3
    - cifar10/cifar10_pre_process.py
    image: public.ecr.aws/pytorch-samples/kfp_samples:latest
name: PreProcessData
outputs:
- description: The path to the input datasets
  name: output_data
- description: Path to generate MLPipeline UI Metadata
  name: MLPipeline UI Metadata

train_component.yaml

description: 'Pytorch training

  '
implementation:
  container:
    args:
    - --dataset_path
    - inputPath: input_data
    - --script_args
    - inputValue: script_args
    - --ptl_args
    - inputValue: ptl_arguments
    - --tensorboard_root
    - outputPath: tensorboard_root
    - --checkpoint_dir
    - outputPath: checkpoint_dir
    - --mlpipeline_ui_metadata
    - outputPath: MLPipeline UI Metadata
    - --mlpipeline_metrics
    - outputPath: MLPipeline Metrics
    command:
    - python3
    - cifar10/cifar10_pytorch.py
    image: public.ecr.aws/pytorch-samples/kfp_samples:latest
inputs:
- description: Input dataset path
  name: input_data
- description: Arguments to the model script
  name: script_args
- description: Arguments to pytorch lightning Trainer
  name: ptl_arguments
name: Training
outputs:
- description: Tensorboard output path
  name: tensorboard_root
- description: Model checkpoint output
  name: checkpoint_dir
- description: MLPipeline UI Metadata output
  name: MLPipeline UI Metadata
- description: MLPipeline Metrics output
  name: MLPipeline Metrics

Notice how all the Pipeline Components are using public.ecr.aws/pytorch-samples/kfp_samples:latest

This is the Dockerfile used to create kfp_samples docker image

# Copyright (c) Facebook, Inc. and its affiliates.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

ARG BASE_IMAGE=pytorch/pytorch:latest

FROM ${BASE_IMAGE}

COPY . .

RUN pip install -U pip

RUN pip install -U --no-cache-dir -r requirements.txt

RUN pip install pytorch-kfp-components

ENV PYTHONPATH /workspace

ENTRYPOINT /bin/bash

Notice how badly requirements.txt is written

boto3
matplotlib
pyarrow
sklearn
transformers
torchdata
webdataset
pandas
s3fs
wget
torch-model-archiver
minio
kfp
tensorboard
torchmetrics
pytorch-lightning

😅 Something will definitely go wrong later

But lets’ continue working on the notebook

@dsl.pipeline(
    name="Training Cifar10 pipeline 3", description="Cifar 10 dataset pipeline 3"
)
def pytorch_cifar10( # pylint: disable=too-many-arguments
    minio_endpoint=MINIO_ENDPOINT,
    log_bucket=LOG_BUCKET,
    log_dir=f"tensorboard/logs/{dsl.RUN_ID_PLACEHOLDER}",
    mar_path=f"mar/{dsl.RUN_ID_PLACEHOLDER}/model-store",
    config_prop_path=f"mar/{dsl.RUN_ID_PLACEHOLDER}/config",
    model_uri=f"s3://mlpipeline/mar/{dsl.RUN_ID_PLACEHOLDER}",
    tf_image=TENSORBOARD_IMAGE,
    deploy=DEPLOY_NAME,
    isvc_name=ISVC_NAME,
    model=MODEL_NAME,
    namespace=NAMESPACE,
    confusion_matrix_log_dir=f"confusion_matrix/{dsl.RUN_ID_PLACEHOLDER}/",
    checkpoint_dir="checkpoint_dir/cifar10",
    input_req=INPUT_REQUEST,
    cookie=COOKIE,
    ingress_gateway=INGRESS_GATEWAY,
):
    def sleep_op(seconds):
        """Sleep for a while."""
        return dsl.ContainerOp(
            name="Sleep " + str(seconds) + " seconds",
            image="python:alpine3.6",
            command=["sh", "-c"],
            arguments=[
                'python -c "import time; time.sleep($0)"',
                str(seconds)
            ],
        )

    """This method defines the pipeline tasks and operations"""
    pod_template_spec = json.dumps({
        "spec": {
            "containers": [{
                "env": [
                    {
                        "name": "AWS_ACCESS_KEY_ID",
                        "valueFrom": {
                            "secretKeyRef": {
                                "name": "mlpipeline-minio-artifact",
                                "key": "accesskey",
                            }
                        },
                    },
                    {
                        "name": "AWS_SECRET_ACCESS_KEY",
                        "valueFrom": {
                            "secretKeyRef": {
                                "name": "mlpipeline-minio-artifact",
                                "key": "secretkey",
                            }
                        },
                    },
                    {
                        "name": "AWS_REGION",
                        "value": "minio"
                    },
                    {
                        "name": "S3_ENDPOINT",
                        "value": f"{minio_endpoint}",
                    },
                    {
                        "name": "S3_USE_HTTPS",
                        "value": "0"
                    },
                    {
                        "name": "S3_VERIFY_SSL",
                        "value": "0"
                    },
                ]
            }]
        }
    })

    prepare_tb_task = prepare_tensorboard_op(
        log_dir_uri=f"s3://{log_bucket}/{log_dir}",
        image=tf_image,
        pod_template_spec=pod_template_spec,
    ).set_display_name("Visualization")

    prep_task = (
        prep_op().after(prepare_tb_task
                       ).set_display_name("Preprocess & Transform")
    )
    confusion_matrix_url = f"minio://{log_bucket}/{confusion_matrix_log_dir}"
    script_args = f"model_name=resnet.pth," \
                  f"confusion_matrix_url={confusion_matrix_url}"
    # For GPU, set number of devices and strategy type
    ptl_args = f"max_epochs=1, devices=0, strategy=None, profiler=pytorch, accelerator=auto"
    train_task = (
        train_op(
            input_data=prep_task.outputs["output_data"],
            script_args=script_args,
            ptl_arguments=ptl_args
        ).after(prep_task).set_display_name("Training")
        # For allocating resources, uncomment below lines
        # .set_memory_request('600M')
        # .set_memory_limit('1200M')
        # .set_cpu_request('700m')
        # .set_cpu_limit('1400m')
        # For GPU uncomment below line and set GPU limit and node selector
        # .set_gpu_limit(1).add_node_selector_constraint('cloud.google.com/gke-accelerator','nvidia-tesla-p4')
    )

    (
        minio_op(
            bucket_name="mlpipeline",
            folder_name=log_dir,
            input_path=train_task.outputs["tensorboard_root"],
            filename="",
        ).after(train_task).set_display_name("Tensorboard Events Pusher")
    )

    (
        minio_op(
            bucket_name="mlpipeline",
            folder_name=checkpoint_dir,
            input_path=train_task.outputs["checkpoint_dir"],
            filename="",
        ).after(train_task).set_display_name("checkpoint_dir Pusher")
    )

    minio_mar_upload = (
        minio_op(
            bucket_name="mlpipeline",
            folder_name=mar_path,
            input_path=train_task.outputs["checkpoint_dir"],
            filename="cifar10_test.mar",
        ).after(train_task).set_display_name("Mar Pusher")
    )

    (
        minio_op(
            bucket_name="mlpipeline",
            folder_name=config_prop_path,
            input_path=train_task.outputs["checkpoint_dir"],
            filename="config.properties",
        ).after(train_task).set_display_name("Conifg Pusher")
    )

    model_uri = str(model_uri)
    # pylint: disable=unused-variable
    isvc_yaml = """
    apiVersion: "serving.kserve.io/v1beta1"
    kind: "InferenceService"
    metadata:
      name: {}
      namespace: {}
    spec:
      predictor:
        serviceAccountName: sa
        pytorch:
          protocolVersion: v2
          storageUri: {}
          resources:
            requests:
              cpu: 1
              memory: 1Gi
            limits:
              cpu: 1
              memory: 1Gi
    """.format(deploy, namespace, model_uri)

    # Update inferenceservice_yaml for GPU inference
    deploy_task = (
        deploy_op(action="apply", inferenceservice_yaml=isvc_yaml
                 ).after(minio_mar_upload).set_display_name("Deployer")
    )
    # Wait here for model to be loaded in torchserve for inference
    sleep_task = sleep_op(60).after(deploy_task).set_display_name("Sleep")
    # Make Inference request
    pred_task = (
        pred_op(
            host_name=isvc_name,
            input_request=input_req,
            cookie=cookie,
            url=ingress_gateway,
            model=model,
            inference_type="infer",
        ).after(sleep_task).set_display_name("Prediction")
    )
    (
        pred_op(
            host_name=isvc_name,
            input_request=input_req,
            cookie=cookie,
            url=ingress_gateway,
            model=model,
            inference_type="explain",
        ).after(pred_task).set_display_name("Explanation")
    )

    dsl.get_pipeline_conf().add_op_transformer(
        use_k8s_secret(
            secret_name="mlpipeline-minio-artifact",
            k8s_secret_key_to_env={
                "secretkey": "MINIO_SECRET_KEY",
                "accesskey": "MINIO_ACCESS_KEY",
            },
        )
    )

Compile the pipeline

compiler.Compiler().compile(pytorch_cifar10, 'pytorch.tar.gz', type_check=True)

And start a run of the pipeline

run = client.run_pipeline(my_experiment.id, 'pytorch-cifar10', 'pytorch.tar.gz')

Let’s try to understand what’s going on

Untitled

Untitled

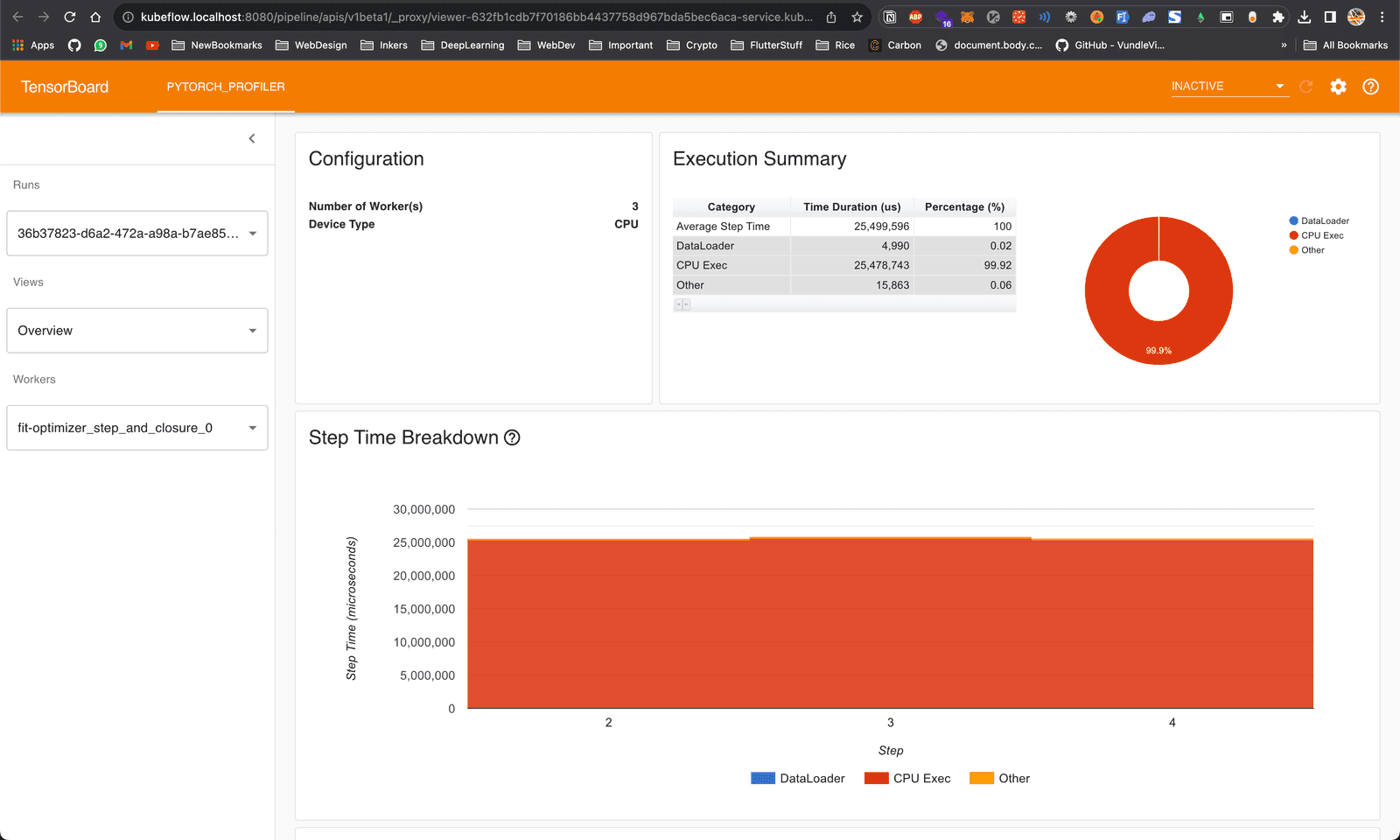

Tensorboard Output type

https://www.kubeflow.org/docs/components/pipelines/v1/sdk/output-viewer/#tensorboard

name: Create Tensorboard visualization
description: |
  Pre-creates Tensorboard visualization for a given Log dir URI.
  This way the Tensorboard can be viewed before the training completes.
  The output Log dir URI should be passed to a trainer component that will write Tensorboard logs to that directory.
inputs:
- {name: Log dir URI, description: 'Tensorboard log path'}
- {name: Image, default: '', description: 'Tensorboard docker image'}
- {name: Pod Template Spec, default: 'null', description: 'Pod template specification'}
outputs:
- {name: Log dir URI, description: 'Tensorboard log output'}
- {name: MLPipeline UI Metadata, description: 'MLPipeline UI Metadata output'}
implementation:
  container:
    image: public.ecr.aws/pytorch-samples/alpine:latest
    command:
    - sh
    - -ex
    - -c
    - |
      log_dir="$0"
      output_log_dir_path="$1"
      output_metadata_path="$2"
      pod_template_spec="$3"
      image="$4"

      mkdir -p "$(dirname "$output_log_dir_path")"
      mkdir -p "$(dirname "$output_metadata_path")"
      echo "$log_dir" > "$output_log_dir_path"

      echo '
          {
            "outputs" : [{
              "type": "tensorboard",
              "source": "'"$log_dir"'",
              "image": "'"$image"'",
              "pod_template_spec": '"$pod_template_spec"'
            }]
          }
      ' >"$output_metadata_path"
    - {inputValue: Log dir URI}
    - {outputPath: Log dir URI}
    - {outputPath: MLPipeline UI Metadata}
    - {inputValue: Pod Template Spec}
    - {inputValue: Image}

Untitled

 kgpo -n kubeflow-user-example-com
NAME                                               READY   STATUS      RESTARTS   AGE
ml-pipeline-ui-artifact-6cb7b9f6fd-ls6nr           2/2     Running     0          45m
ml-pipeline-visualizationserver-7b5889796d-tthgs   2/2     Running     0          45m
test-0                                             2/2     Running     0          12m
training-cifar10-pipeline-dh2wf-1180343131         2/2     Running     0          6m44s
training-cifar10-pipeline-dh2wf-4094479202         0/2     Completed   0          7m21s

Untitled

Here’s the Training Step Source Code

# !/usr/bin/env/python3
# Copyright (c) Facebook, Inc. and its affiliates.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
"""Cifar10 training script."""
import os
import json
from pathlib import Path
from argparse import ArgumentParser
from pytorch_lightning.loggers import TensorBoardLogger
from pytorch_lightning.callbacks import (
    EarlyStopping,
    LearningRateMonitor,
    ModelCheckpoint,
)
from pytorch_kfp_components.components.visualization.component import (
    Visualization,
)
from pytorch_kfp_components.components.trainer.component import Trainer
from pytorch_kfp_components.components.mar.component import MarGeneration
from pytorch_kfp_components.components.utils.argument_parsing import (
    parse_input_args,
)

# Argument parser for user defined paths
parser = ArgumentParser()

parser.add_argument(
    "--tensorboard_root",
    type=str,
    default="output/tensorboard",
    help="Tensorboard Root path (default: output/tensorboard)",
)

parser.add_argument(
    "--checkpoint_dir",
    type=str,
    default="output/train/models",
    help="Path to save model checkpoints (default: output/train/models)",
)

parser.add_argument(
    "--dataset_path",
    type=str,
    default="output/processing",
    help="Cifar10 Dataset path (default: output/processing)",
)

parser.add_argument(
    "--model_name",
    type=str,
    default="resnet.pth",
    help="Name of the model to be saved as (default: resnet.pth)",
)

parser.add_argument(
    "--mlpipeline_ui_metadata",
    default="mlpipeline-ui-metadata.json",
    type=str,
    help="Path to write mlpipeline-ui-metadata.json",
)

parser.add_argument(
    "--mlpipeline_metrics",
    default="mlpipeline-metrics.json",
    type=str,
    help="Path to write mlpipeline-metrics.json",
)

parser.add_argument(
    "--script_args",
    type=str,
    help="Arguments for bert agnews classification script",
)

parser.add_argument(
    "--ptl_args", type=str, help="Arguments specific to PTL trainer"
)

parser.add_argument("--trial_id", default=0, type=int, help="Trial id")

parser.add_argument(
    "--model_params",
    default=None,
    type=str,
    help="Model parameters for trainer"
)

parser.add_argument(
    "--results", default="results.json", type=str, help="Training results"
)

# parser = pl.Trainer.add_argparse_args(parent_parser=parser)
args = vars(parser.parse_args())
script_args = args["script_args"]
ptl_args = args["ptl_args"]
trial_id = args["trial_id"]

TENSORBOARD_ROOT = args["tensorboard_root"]
CHECKPOINT_DIR = args["checkpoint_dir"]
DATASET_PATH = args["dataset_path"]

script_dict: dict = parse_input_args(input_str=script_args)
script_dict["checkpoint_dir"] = CHECKPOINT_DIR

ptl_dict: dict = parse_input_args(input_str=ptl_args)

# Enabling Tensorboard Logger, ModelCheckpoint, Earlystopping

lr_logger = LearningRateMonitor()
tboard = TensorBoardLogger(TENSORBOARD_ROOT, log_graph=True)
early_stopping = EarlyStopping(
    monitor="val_loss", mode="min", patience=5, verbose=True
)
checkpoint_callback = ModelCheckpoint(
    dirpath=CHECKPOINT_DIR,
    filename="cifar10_{epoch:02d}",
    save_top_k=1,
    verbose=True,
    monitor="val_loss",
    mode="min",
)

if "accelerator" in ptl_dict and ptl_dict["accelerator"] == "None":
    ptl_dict["accelerator"] = None

# Setting the trainer specific arguments
trainer_args = {
    "logger": tboard,
    "checkpoint_callback": True,
    "callbacks": [lr_logger, early_stopping, checkpoint_callback],
}

if not ptl_dict["max_epochs"]:
    trainer_args["max_epochs"] = 1
else:
    trainer_args["max_epochs"] = ptl_dict["max_epochs"]

if "profiler" in ptl_dict and ptl_dict["profiler"] != "":
    trainer_args["profiler"] = ptl_dict["profiler"]

# Setting the datamodule specific arguments
data_module_args = {"train_glob": DATASET_PATH}

# Creating parent directories
Path(TENSORBOARD_ROOT).mkdir(parents=True, exist_ok=True)
Path(CHECKPOINT_DIR).mkdir(parents=True, exist_ok=True)

# Updating all the input parameter to PTL dict

trainer_args.update(ptl_dict)

if "model_params" in args and args["model_params"] is not None:
    args.update(json.loads(args["model_params"]))

# Initiating the training process
trainer = Trainer(
    module_file="cifar10_train.py",
    data_module_file="cifar10_datamodule.py",
    module_file_args=args,
    data_module_args=data_module_args,
    trainer_args=trainer_args,
)

model = trainer.ptl_trainer.lightning_module

if trainer.ptl_trainer.global_rank == 0:
    # Mar file generation

    cifar_dir, _ = os.path.split(os.path.abspath(__file__))

    mar_config = {
        "MODEL_NAME":
            "cifar10_test",
        "MODEL_FILE":
            os.path.join(cifar_dir, "cifar10_train.py"),
        "HANDLER":
            os.path.join(cifar_dir, "cifar10_handler.py"),
        "SERIALIZED_FILE":
            os.path.join(CHECKPOINT_DIR, script_dict["model_name"]),
        "VERSION":
            "1",
        "EXPORT_PATH":
            CHECKPOINT_DIR,
        "CONFIG_PROPERTIES":
            os.path.join(cifar_dir, "config.properties"),
        "EXTRA_FILES":
            "{},{}".format(
                os.path.join(cifar_dir, "class_mapping.json"),
                os.path.join(cifar_dir, "classifier.py"),
            ),
        "REQUIREMENTS_FILE":
            os.path.join(cifar_dir, "requirements.txt"),
    }

    MarGeneration(mar_config=mar_config, mar_save_path=CHECKPOINT_DIR)

    classes = [
        "airplane",
        "automobile",
        "bird",
        "cat",
        "deer",
        "dog",
        "frog",
        "horse",
        "ship",
        "truck",
    ]

    # print(dir(trainer.ptl_trainer.model.module))
    # model = trainer.ptl_trainer.model

    target_index_list = list(set(model.target))

    class_list = []
    for index in target_index_list:
        class_list.append(classes[index])

    confusion_matrix_dict = {
        "actuals": model.target,
        "preds": model.preds,
        "classes": class_list,
        "url": script_dict["confusion_matrix_url"],
    }

    test_accuracy = round(float(model.test_acc.compute()), 2)

    print("Model test accuracy: ", test_accuracy)

    if "model_params" in args and args["model_params"] is not None:
        data = {}
        data[trial_id] = test_accuracy

        Path(os.path.dirname(args["results"])).mkdir(
            parents=True, exist_ok=True
        )

        results_file = Path(args["results"])
        if results_file.is_file():
            with open(results_file, "r") as fp:
                old_data = json.loads(fp.read())
            data.update(old_data)

        with open(results_file, "w") as fp:
            fp.write(json.dumps(data))

    visualization_arguments = {
        "input": {
            "tensorboard_root": TENSORBOARD_ROOT,
            "checkpoint_dir": CHECKPOINT_DIR,
            "dataset_path": DATASET_PATH,
            "model_name": script_dict["model_name"],
            "confusion_matrix_url": script_dict["confusion_matrix_url"],
        },
        "output": {
            "mlpipeline_ui_metadata": args["mlpipeline_ui_metadata"],
            "mlpipeline_metrics": args["mlpipeline_metrics"],
        },
    }

    markdown_dict = {"storage": "inline", "source": visualization_arguments}

    print("Visualization Arguments: ", markdown_dict)

    visualization = Visualization(
        test_accuracy=test_accuracy,
        confusion_matrix_dict=confusion_matrix_dict,
        mlpipeline_ui_metadata=args["mlpipeline_ui_metadata"],
        mlpipeline_metrics=args["mlpipeline_metrics"],
        markdown=markdown_dict,
    )

    checpoint_dir_contents = os.listdir(CHECKPOINT_DIR)
    print(f"Checkpoint Directory Contents: {checpoint_dir_contents}")

Which is defined in the pipeline as

ptl_args = f"max_epochs=1, devices=0, strategy=None, profiler=pytorch, accelerator=auto"
    train_task = (
        train_op(
            input_data=prep_task.outputs["output_data"],
            script_args=script_args,
            ptl_arguments=ptl_args
        ).after(prep_task).set_display_name("Training")
        # For allocating resources, uncomment below lines
        # .set_memory_request('600M')
        # .set_memory_limit('1200M')
        # .set_cpu_request('700m')
        # .set_cpu_limit('1400m')
        # For GPU uncomment below line and set GPU limit and node selector
        # .set_gpu_limit(1).add_node_selector_constraint('cloud.google.com/gke-accelerator','nvidia-tesla-p4')
    )

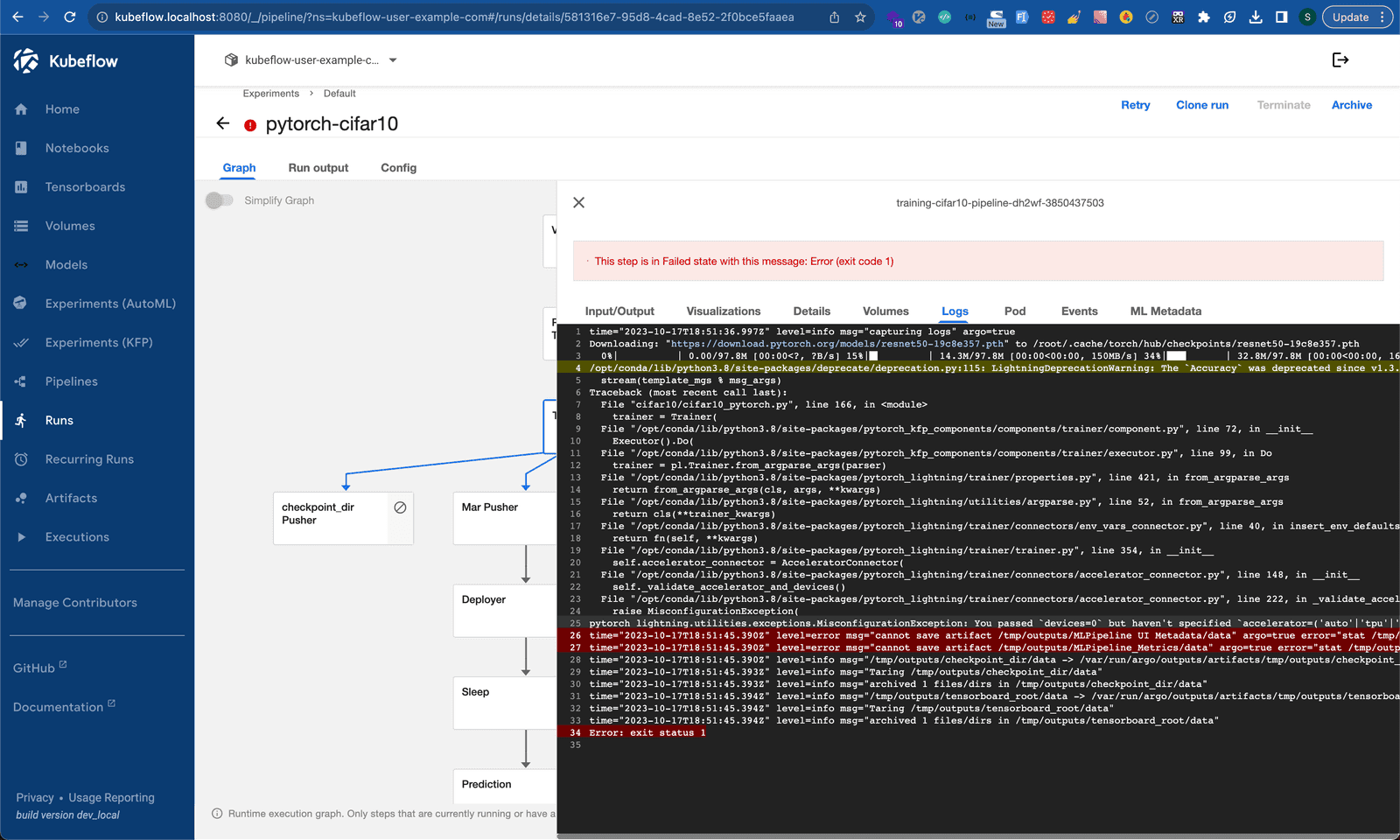

Untitled

You can also see the Pod logs for the same

klo training-cifar10-pipeline-dh2wf-3850437503 -n kubeflow-user-example-com

We just have to add accelerator=auto to fix it!

ptl_args = f"max_epochs=1, devices=0, strategy=None, profiler=pytorch, accelerator=auto"

Now redeploy the pipeline

Training Started

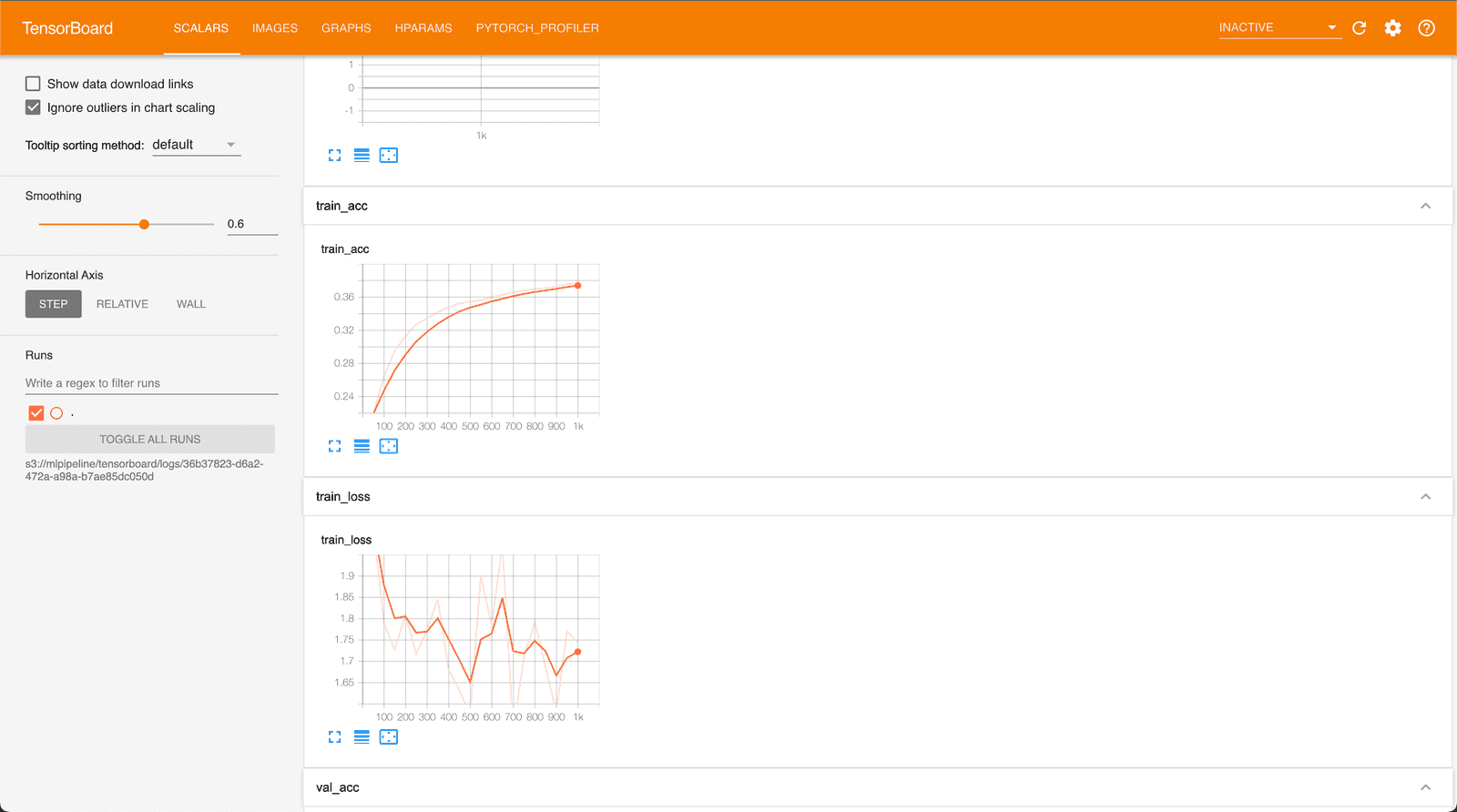

Untitled

Untitled

Untitled

We can see the Artifacts generated in the run in MINIO

kubectl port-forward -n kubeflow svc/minio-service 9000:9000

minio

minio123

Untitled

Untitled

Untitled

Untitled

❯ k top pod -n kubeflow-user-example-com
NAME                                                              CPU(cores)   MEMORY(bytes)
ml-pipeline-ui-artifact-6cb7b9f6fd-5r44w                          5m           118Mi
ml-pipeline-visualizationserver-7b5889796d-6mxm6                  2m           138Mi
test-notebook-0                                                   5m           606Mi
training-cifar10-pipeline-3-zwdfr-988927673                       1102m        1764Mi
viewer-1634c2300b6318814b78b58b7e6a74a106c1a5f6-deploymentvzxnt   8m           466Mi
viewer-632fb1cdb7f70186bb4437758d967bda5bec6aca-deploymentjsjjk   7m           369Mi

Once the training is done, The model is packaged into .mar file and an KServe Inference Service is created

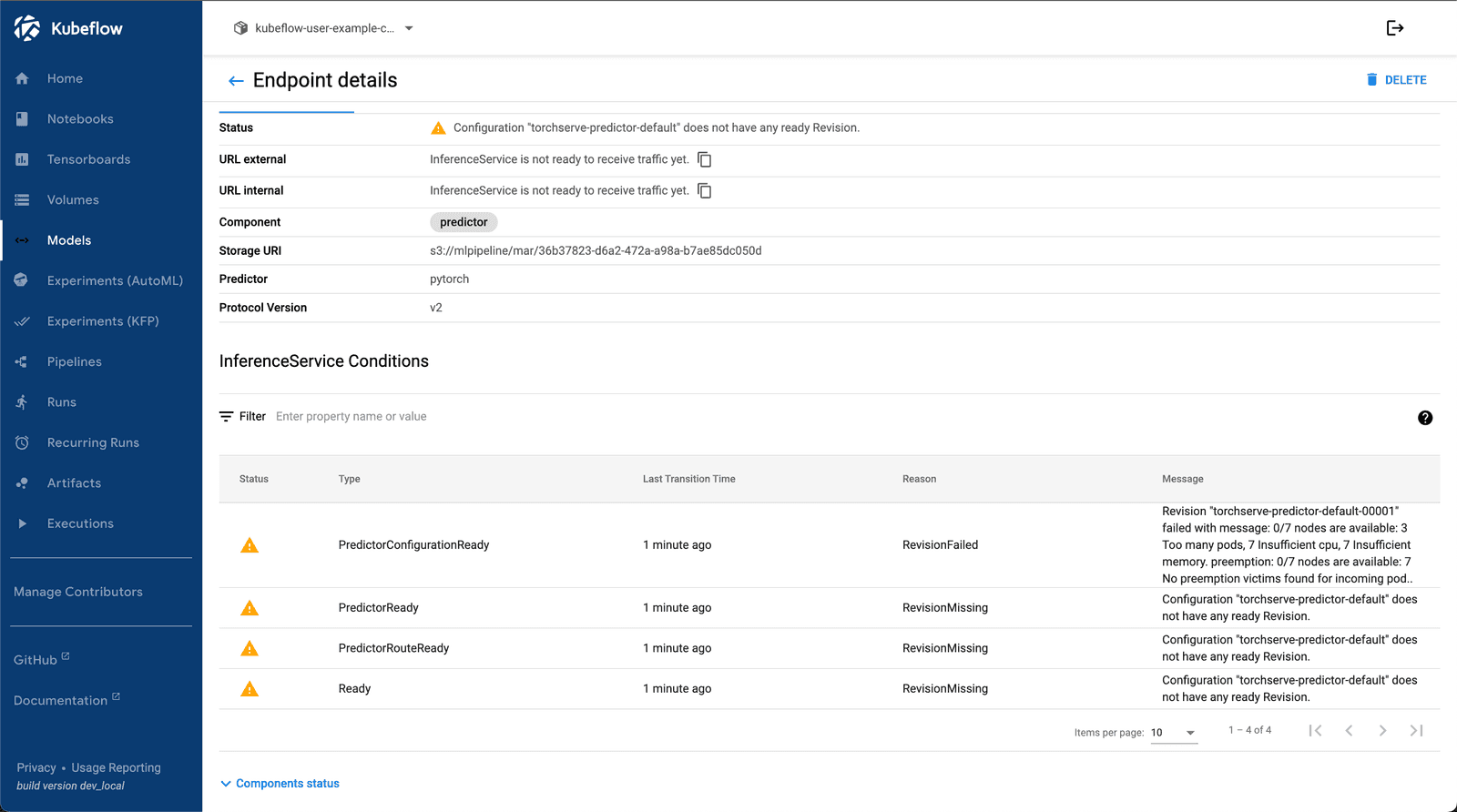

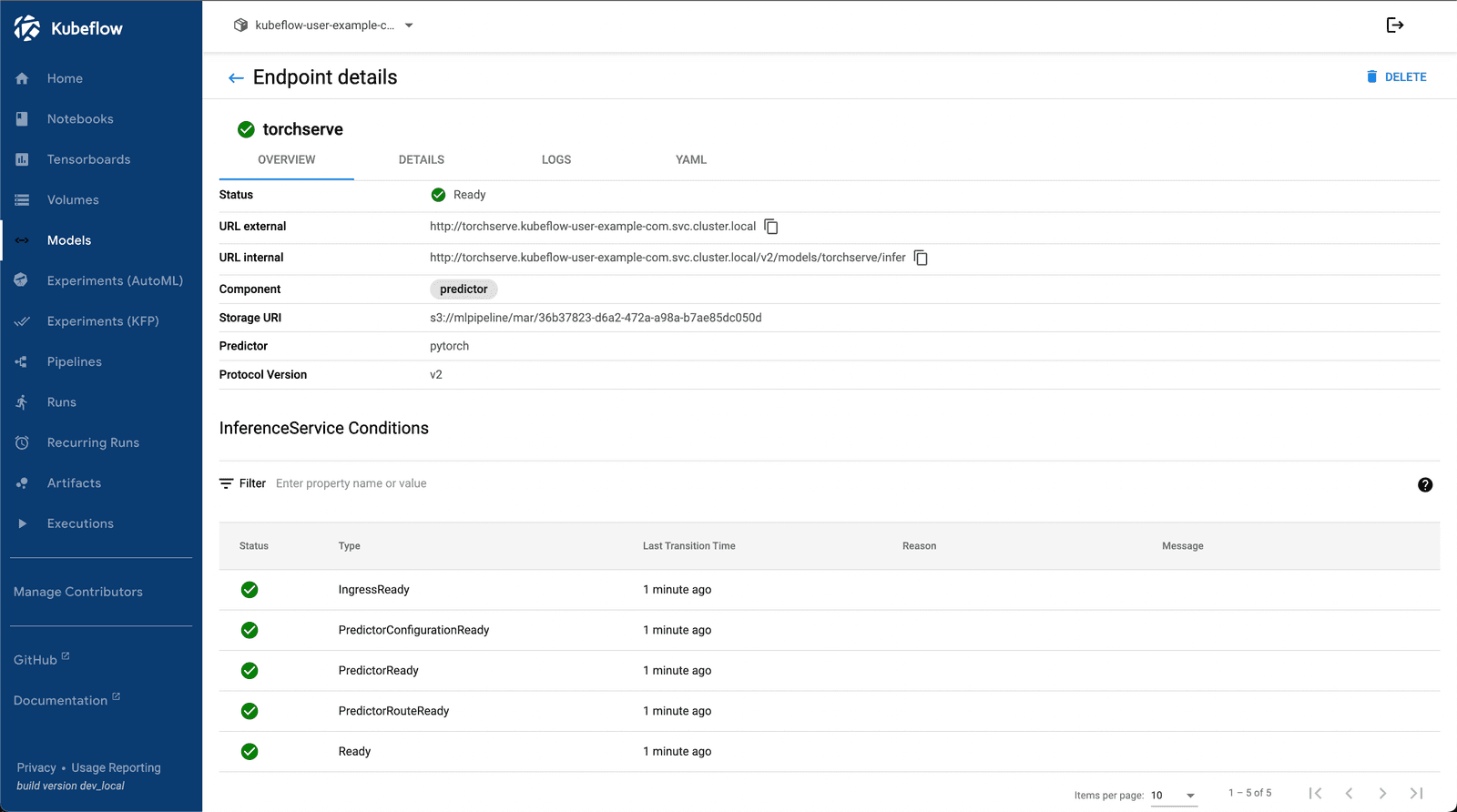

Untitled

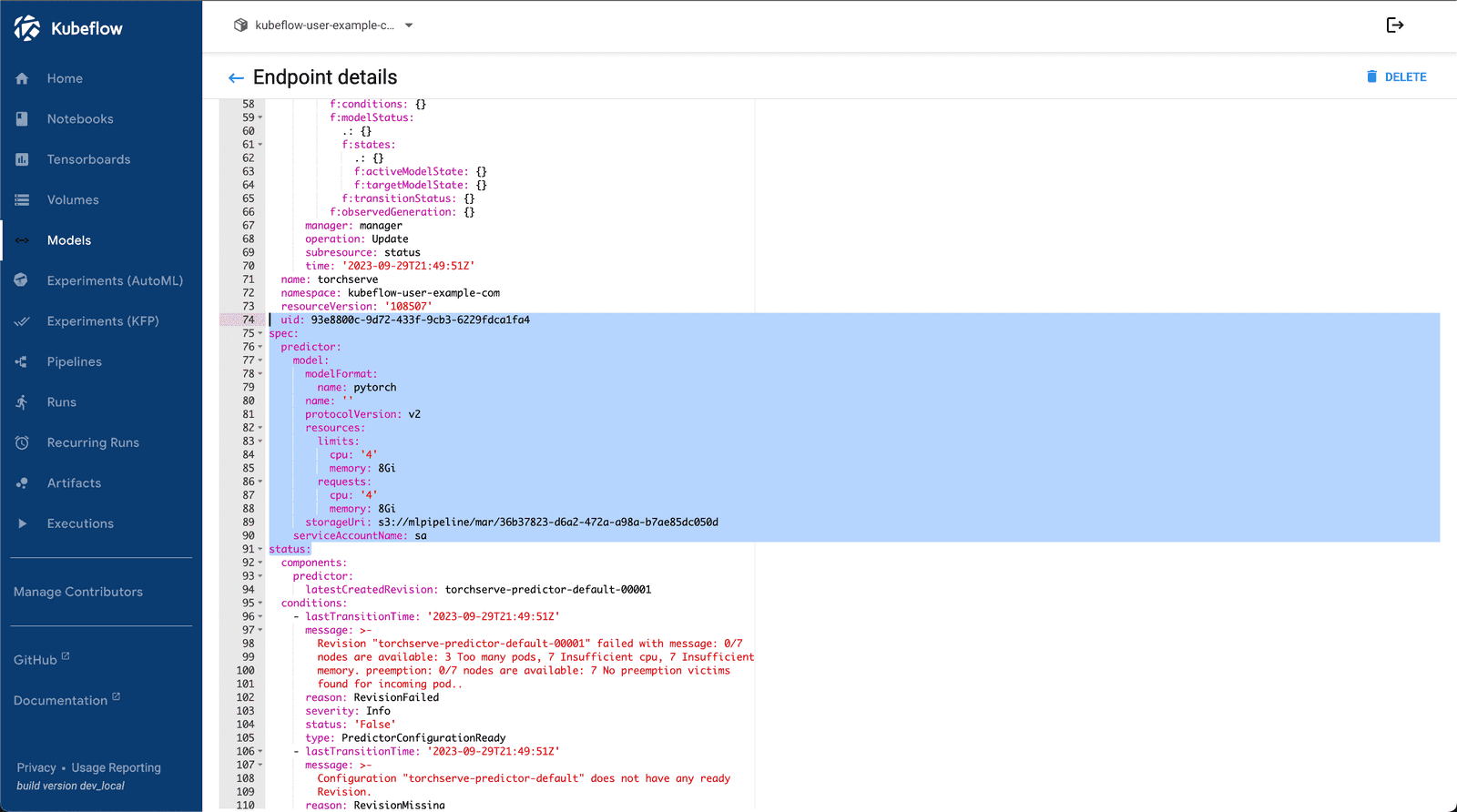

Untitled

Troubleshoot Steps

  • First check logs of the Pods is something is erroring out during execution
  • Describe Pods to check why its not getting scheduled
  • Check Logs for Replicaset to see why its not able to schedule
  • Delete Pod to restart a service
  • Check Kubeflow Model Deployment logs to see whats going wrong
  • If caching is the problem you can always start a pipeline run without cache by just setting enable_caching=False
run = client.run_pipeline(my_experiment.id, 'pytorch-cifar10-new-new', 'pytorch.tar.gz', enable_caching=False)

Create a Node with High Memory

- name: ng-spot-large
    instanceType: t3a.2xlarge
    desiredCapacity: 1
    ssh:
      allow: true # will use ~/.ssh/id_rsa.pub as the default ssh key
    iam:
      withAddonPolicies:
        autoScaler: true
        ebs: true
        efs: true
        awsLoadBalancerController: true

Model should be deployed now!

Warning  FailedScheduling  2m34s (x2 over 7m34s)  default-scheduler  0/6 nodes are available: 6 Insufficient cpu, 6 Insufficient memory. preemption: 0/6 nodes are available: 6 No preemption victims found for incoming pod.
  Normal   Scheduled         116s                   default-scheduler  Successfully assigned kubeflow-user-example-com/torchserve-predictor-default-00001-deployment-75b9977f84-qdf2h to ip-192-168-52-227.ap-south-1.compute.internal
  Normal   Pulling           115s                   kubelet            Pulling image "kserve/storage-initializer:v0.10.0"
  Normal   Pulled            100s                   kubelet            Successfully pulled image "kserve/storage-initializer:v0.10.0" in 15.186598864s (15.186607495s including waiting)

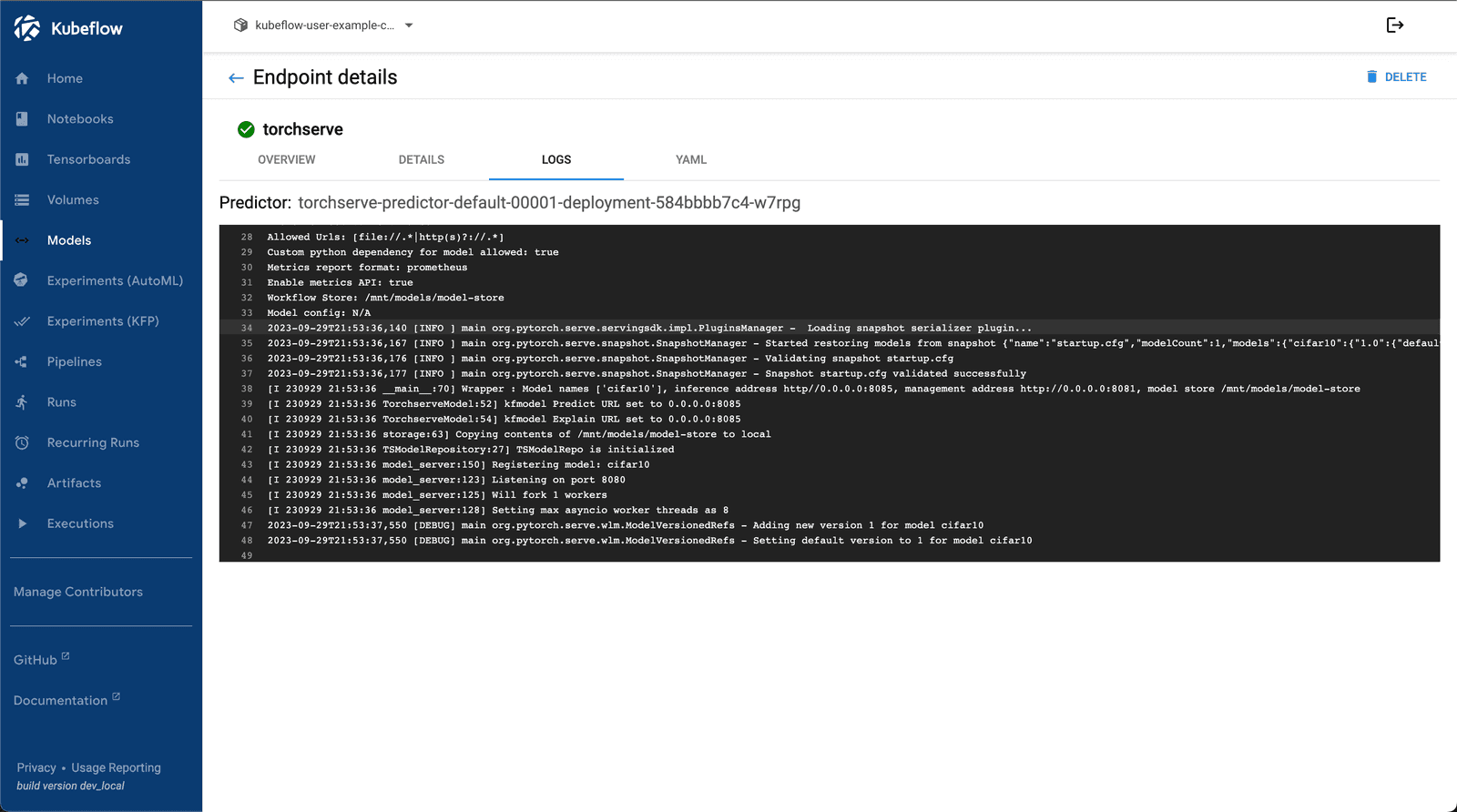

Untitled

Untitled

Untitled

k logs torchserve-predictor-default-00002-deployment-56f9769c54-sj95f -n kubeflow-user-example-com

😅 This will still not work because of two reasons

  • requirements.txt in the MAR file does not have versions mentioned, which leads to installing the latest pytorch and latest pytorch lightning
  • config.properties is wrong, which still uses the old kfserve requests envelope

We need to path both of these in our MAR file to make it work!

Untitled

We can always exec inside our inference service pod to check the config.properties and requirements.txt bundled in the .MAR file

But here’s the correct ones

config.properties

inference_address=http://0.0.0.0:8085
management_address=http://0.0.0.0:8081
metrics_address=http://0.0.0.0:8082
enable_metrics_api=true
metrics_format=prometheus
install_py_dep_per_model=true
number_of_netty_threads=4
job_queue_size=10
service_envelope=kservev2
max_response_size = 655350000
model_store=/mnt/models/model-store
model_snapshot={"name":"startup.cfg","modelCount":1,"models":{"cifar10":{"1.0":{"defaultVersion":true,"marName":"cifar10_test.mar","minWorkers":1,"maxWorkers":5,"batchSize":1,"maxBatchDelay":5000,"responseTimeout":900}}}}

The service_envelope is correctly set to kservev2

Also here’s the right requirements.txt

requirements.txt

--find-links https://download.pytorch.org/whl/cu117
torch==1.13.0
torchvision
pytorch-lightning==1.9.0
scikit-learn
captum

But how are we going to patch this in our pipeline?

🥲 Recreate the MAR File

First we need to get the existing .MAR file and config.properties

kubectl port-forward -n kubeflow svc/minio-service 9000:9000
accessKey: minio
secretKey: minio123

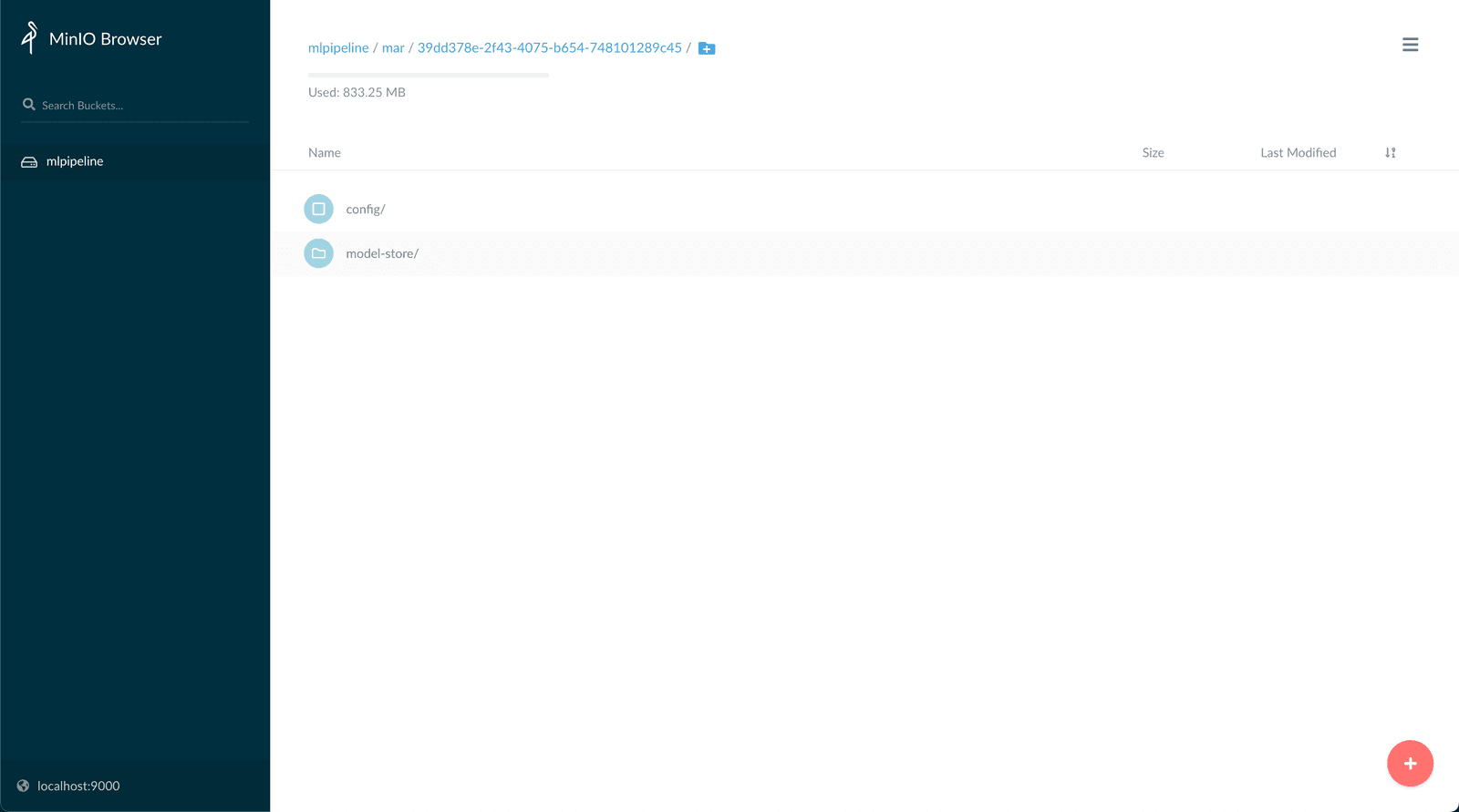

Untitled

config folder has the config.properties and model-store has the .mar file

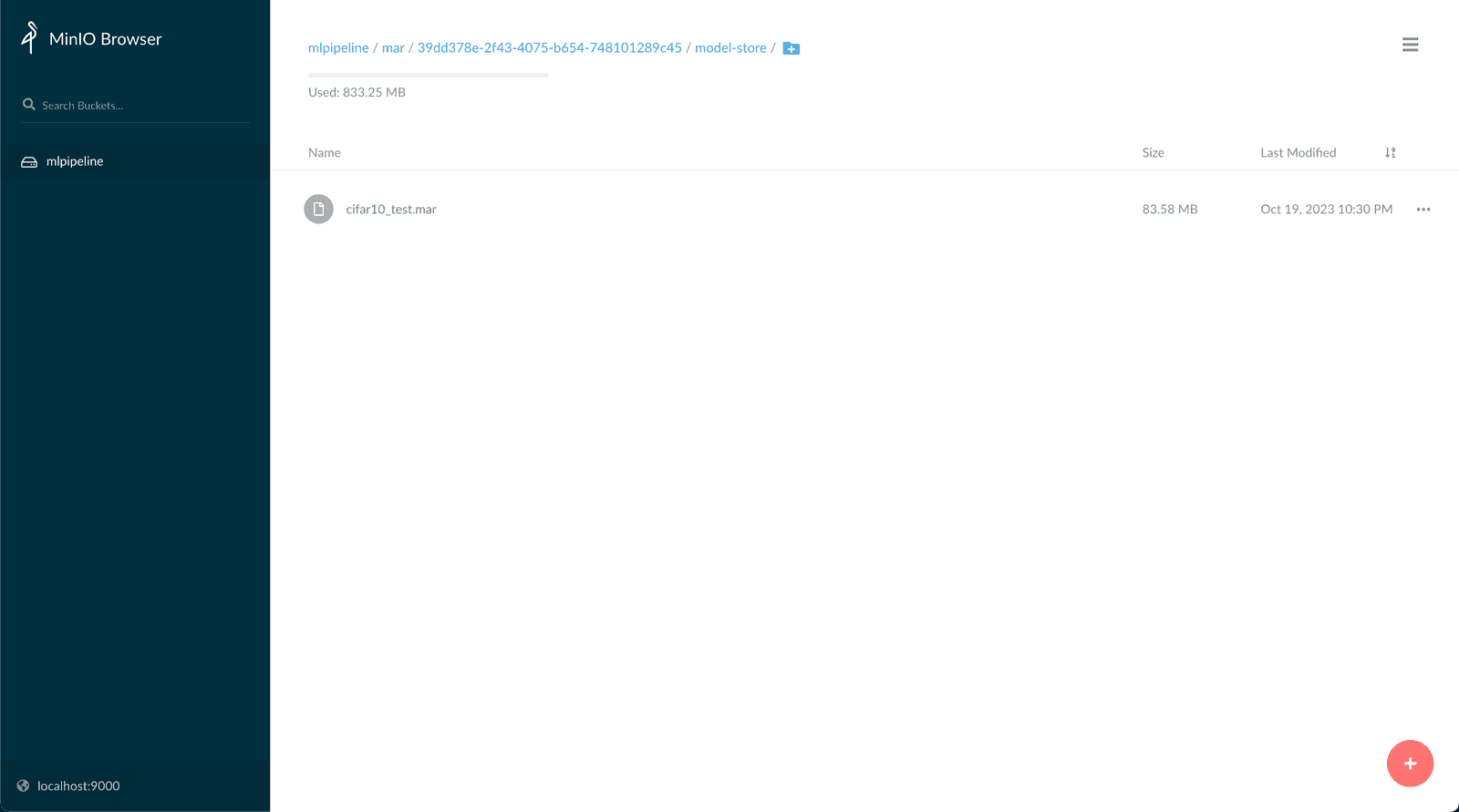

Untitled

Download the .mar file

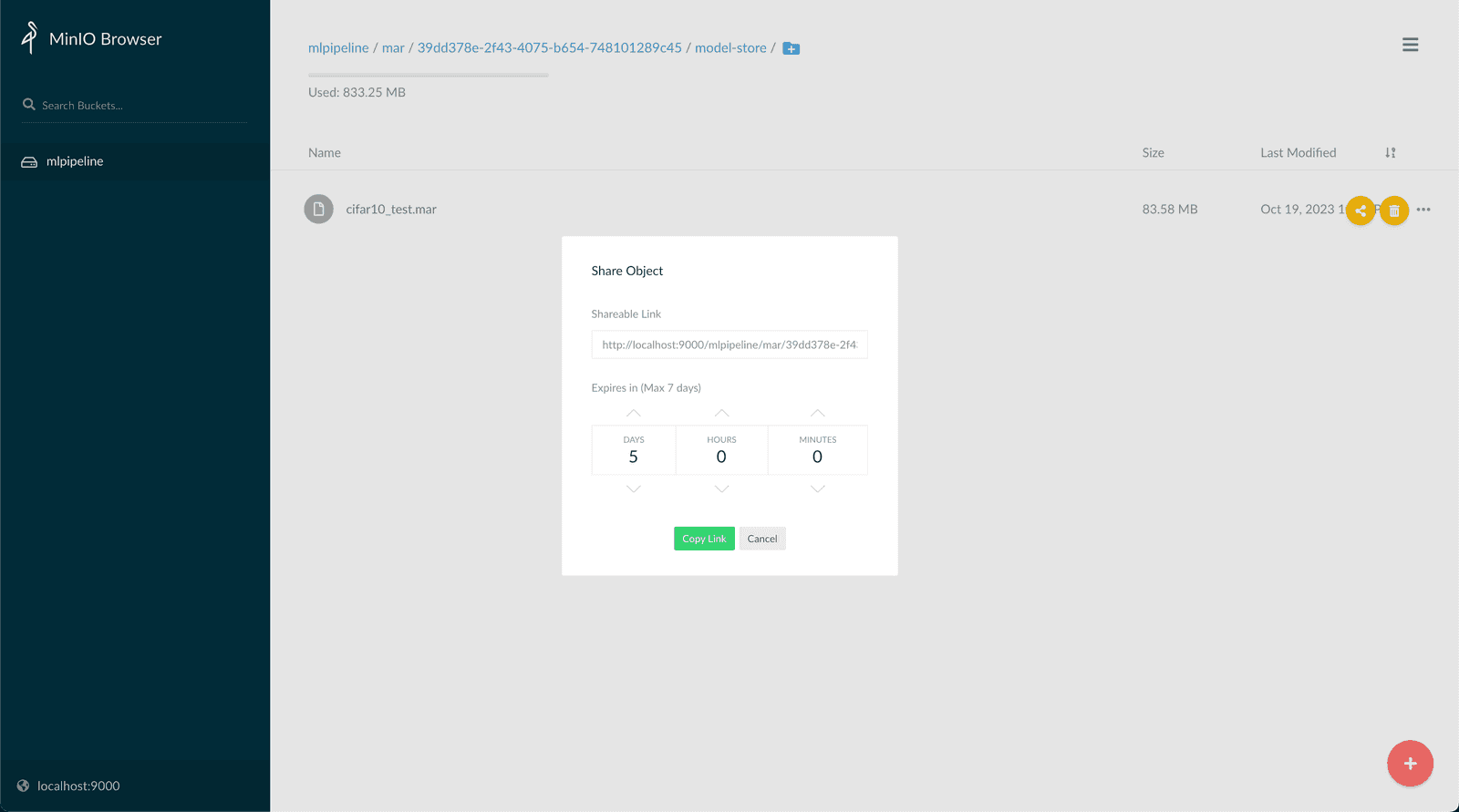

Untitled

The .mar file is simply a .zip file with some extra metadata in a folder

So we can take this .mar to an instance and fiddle with it

cp cifar10_test.mar cifar10_test.zip
unzip cifar10_test.zip

Now you can make changes in this, patch the files and recreate the .mar file

docker run -it --rm --shm-size=1g --ulimit memlock=-1 --ulimit stack=67108864 -v `pwd`:/opt/src pytorch/torchserve:0.7.0-cpu bash
torch-model-archiver --model-name cifar10_test --version 1 --handler cifar10_handle
r.py --model-file cifar10_train.py --serialized-file resnet.pth --extra-files class_mapping.json,classifier.py --requirements-f
ile requirements.txt

Once done, replace the .mar file in MINIO with this patched file

Similarly patch the config.properties in MINIO

So, now simply delete the inference pod and another pod will pickup the new config

k delete pod torchserve-predictor-default-00001-deployment-6f6dd97f88-8clgj -n kubeflow-user-example-com

Monitor Logs of the Inference Service to see if it loaded successfully

 2023-10-19T17:11:56,590 [WARN ] W-9000-cifar10_1-stderr MODEL_LOG -  95%|█████████▌| 93.3M/97.8M [00:00<00:00, 246MB/s]
 2023-10-19T17:11:56,591 [WARN ] W-9000-cifar10_1-stderr MODEL_LOG - 100%|██████████| 97.8M/97.8M [00:00<00:00, 246MB/s]
 2023-10-19T17:11:56,849 [INFO ] W-9000-cifar10_1-stdout MODEL_LOG - CIFAR10 model from path /home/model-server/tmp/models/5453ff5707ed42feb0a7977f9365bc2d loaded successfully

We can try inference now

!kubectl get isvc $DEPLOY
INFERENCE_SERVICE_LIST = ! kubectl get isvc {DEPLOY_NAME} -n {NAMESPACE} -o json | python3 -c "import sys, json; print(json.load(sys.stdin)['status']['url'])"| tr -d '"' | cut -d "/" -f 3
INFERENCE_SERVICE_NAME = INFERENCE_SERVICE_LIST[0]
INFERENCE_SERVICE_NAME

Convert the Image to bytes

!python cifar10/tobytes.py cifar10/kitten.png

Curl our model endpoint

!curl -v -H "Host: $INFERENCE_SERVICE_NAME" -H "Cookie: $COOKIE" "$INGRESS_GATEWAY/v2/models/$MODEL_NAME/infer" -d @./cifar10/kitten.json
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<title>Error</title>
</head>
<body>
<pre>Cannot POST /v2/models/cifar10/infer</pre>
</body>
</html>

Untitled

So now what?

The default kubeflow doesn’t come with proper dns settings! Which is why Istio is not proxying the request to KServe Endpoint at all! This must be hitting our Kubeflow Frontend endpoint, which is why it says cannot post

Which means we will not be able to access our isvc from istio ingress in the current config

The fix is simple

Patch the Config Domain in KServe

kubectl patch cm config-domain --patch '{"data":{"emlo.tsai":""}}' -n knative-serving

This will suffix our deployments on .emlo.tsai as the domain name

This will change the domain of our ISVC!

kg isvc -n kubeflow-user-example-com
NAME         URL                                                     READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION                  AGE
torchserve   http://torchserve.kubeflow-user-example-com.emlo.tsai   True           100                              torchserve-predictor-default-00001   87m

We can do a curl and check if the models are being listed

!curl -v -H "Host: torchserve.kubeflow-user-example-com.emlo.tsai" \
         -H "Cookie: $COOKIE" \
         "http://istio-ingressgateway.istio-system.svc.cluster.local/v2/models"

Now we can perform inference!

MODEL_NAME="cifar10"
INGRESS_GATEWAY='http://istio-ingressgateway.istio-system.svc.cluster.local'
INFERENCE_SERVICE_LIST = ! kubectl get isvc {DEPLOY_NAME} -n {NAMESPACE} -o json | python3 -c "import sys, json; print(json.load(sys.stdin)['status']['url'])"| tr -d '"' | cut -d "/" -f 3
INFERENCE_SERVICE_NAME = INFERENCE_SERVICE_LIST[0]
INFERENCE_SERVICE_NAME
! curl -v -H "Host: $INFERENCE_SERVICE_NAME" -H "Cookie: $COOKIE" "$INGRESS_GATEWAY/v2/models/$MODEL_NAME/infer" -d @./cifar10/kitten.json
*   Trying 10.100.82.227:80...
* Connected to istio-ingressgateway.istio-system.svc.cluster.local (10.100.82.227) port 80 (#0)
> GET /v2/models HTTP/1.1
> Host: torchserve.kubeflow-user-example-com.emlo.tsai
> User-Agent: curl/7.68.0
> Accept: */*
> Cookie: authservice_session=MTY5NzcyNjMwMXxOd3dBTkVKQk5FaE5UamRIVGtoVFVFVkxSVGN5V2pOQ1IwbEtRMDFWVEZVelNGY3pURFZPVEVFMVJETTBSVkJSV2xsWVRraFpORkU9fCYy8cU5OU4NgGLWxAIPkBfiR9fiGw_jCNZG4h3C_O1-
>
< HTTP/1.1 200 OK
< content-length: 23
< content-type: application/json; charset=UTF-8
< date: Thu, 19 Oct 2023 18:17:18 GMT
< etag: "0b95baa9f82752699748d8353b8c2bd2f839fe98"
< server: envoy
< x-envoy-upstream-service-time: 24
<
* Connection #0 to host istio-ingressgateway.istio-system.svc.cluster.local left intact
{"models": ["cifar10"]}
! curl -v -H "Host: $INFERENCE_SERVICE_NAME" -H "Cookie: $COOKIE" "$INGRESS_GATEWAY/v2/models/$MODEL_NAME/infer" -d @./cifar10/kitten.json
*   Trying 10.100.82.227:80...
* Connected to istio-ingressgateway.istio-system.svc.cluster.local (10.100.82.227) port 80 (#0)
> POST /v2/models/cifar10/infer HTTP/1.1
> Host: torchserve.kubeflow-user-example-com.example.com
> User-Agent: curl/7.68.0
> Accept: */*
> Cookie: authservice_session=MTY5NzcyNjMwMXxOd3dBTkVKQk5FaE5UamRIVGtoVFVFVkxSVGN5V2pOQ1IwbEtRMDFWVEZVelNGY3pURFZPVEVFMVJETTBSVkJSV2xsWVRraFpORkU9fCYy8cU5OU4NgGLWxAIPkBfiR9fiGw_jCNZG4h3C_O1-
> Content-Length: 473057
> Content-Type: application/x-www-form-urlencoded
>
* We are completely uploaded and fine
< HTTP/1.1 200 OK
< content-length: 324
< content-type: application/json; charset=UTF-8
< date: Thu, 19 Oct 2023 18:00:29 GMT
< server: envoy
< x-envoy-upstream-service-time: 389
<
* Connection #0 to host istio-ingressgateway.istio-system.svc.cluster.local left intact
{"id": "6027c8ea-9d50-46a2-ba08-9534d05e430d", "model_name": "cifar10_test", "model_version": "1", "outputs": [{"name": "predict", "shape": [], "datatype": "BYTES", "data": [{"truck": 0.7997960448265076, "car": 0.07536693662405014, "plane": 0.05102648213505745, "frog": 0.04046350345015526, "ship": 0.014834731817245483}]}]}

It works!

Notes:

! pip install ipywidgets==8.0.4
jupyter nbextension enable --py widgetsnbextension

Uninstall Kubeflow

make delete-kubeflow INSTALLATION_OPTION=helm DEPLOYMENT_OPTION=vanilla

PyTorch Job in Pipeline

https://github.com/kubeflow/pipelines/blob/master/components/kubeflow/pytorch-launcher/sample.py
